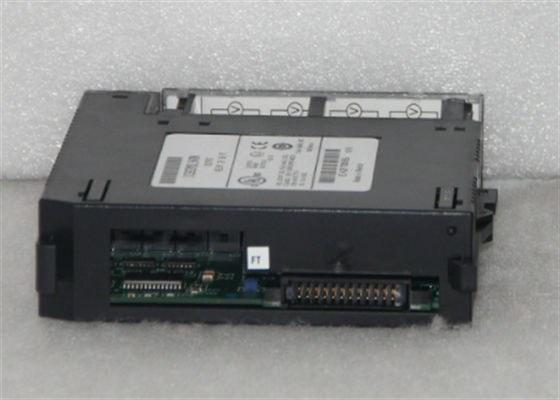

GE FANUC IC693MDL241 Typical Module 0.22 Ms Per 1K Of Logic New

GE FANUC IC693MDL241 Typical Module 0.22 Ms Per 1K Of Logic

Technical Specifications for IC693MDL241

Brand GE Fanuc
Series Series 90-30
Manufacturer GE Fanuc
Manufacturer GE Fanuc (Former); Emerson Automation (Current)
Part Number IC693MDL241
Product Description Discrete input module
Series Series 90-30
Part Number IC693MDL241
No of Channels Sixteen (16)
Brand GE Intelligent Platforms/GE Fanuc
Input grouping Single group of 16 inputs
Wiring configuration Positive / Negative logic
Isolation 1500 VAC between field side and logic side
Product Type Input Module
Input signal range 0-30 VAC / VDC
Input voltage range 0 to +30 volts DC or 0 to +30 volts AC, 50/60 Hz
Nominal Input voltage 24 VAC / VDC
Voltage 24 V AC
Input current 7 mA at rated voltage
Nominal output voltage 24 VAC / 24 VDC
Voltage 24 V DC

Current draw 80 mA @ 5 VDC when all inputs on; 125 mA from the isolated 24 VDC backplane bus or the user provided

external power supply.
Off response time, maximum 28 ms
Inputs 16
On State Voltage 11.5 - 30.0 VAC / VDC
On–state Voltage 11.5 to 30 volts AC or DC
Frequency 50/60 Hz
Off state voltage 0-4 VAC / VDC
Off–state Voltage 0 to +4 volts AC or DC
Input Current at a Rated Voltage 7 mA
On–state Current 1 mA maximum
On state current 3.2 mA
Isolation between field side and logic side 1500 V RMS
Off state current 1 mA
DC Power Yes
AC Power Yes
On response time, typical 12 ms
On response time, maximum 12ms
LED Indicators 16
Logic reading %I
Product Lifecycle Status Discontinued/Obsolete



About IC693MDL241

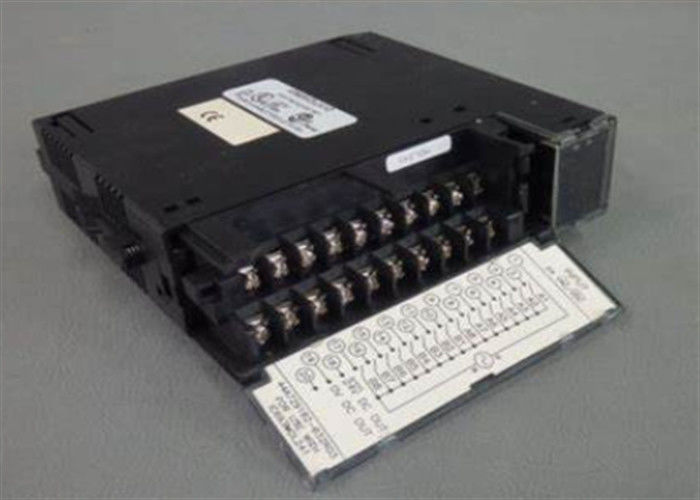

The IC693MDL241 is a discrete input module from the series 90-30 Programmable Logic Controller (PLC) series.

This module features Sixteen (16) output channels in one output group having a single common terminal. It operates at input

voltages ranges of 0-30 VDC or 0-30 VAC while the module’s rated voltages are 24 VAC / 24 VDC. This module supports wiring

of binary or On / Off or dual state-input devices such as limit switches, push-button switches, proximity switches, auxiliary

contacts, and similar devices. The IC693MDL241 is provided with Two (2) rows of LED status indicators, used to depict the

energization of each input channel. An input channel that is actively receiving an input current of 7 mA at rated voltage has its

corresponding LED activated. Aside from the LED indicators, modules inserts are provided where a short description or input

tags can be written for easy identification of input channels. This module is compatible with being installed to a 5-slot or 10-slot

baseplate of the Series 90-30 PLC platform. The on-state voltage rating of the input channels is 11.5 - 30 VAC / VDC while the

Off-state voltage is 0 - 4 VDC / VAC. Similarly, the maximum On-state current is 3.2 mA while the maximum Off-state current

is 1 mA. The module’s On signal transition delay is 12 ms while the Off response time is 28 ms. The power consumption of this

module is rated 80 mA @ 5 VDC when all inputs are at logic 1 state and 125 mA from the isolated 24 VDC backplane bus or the

user-provided external power supply.

The IC693MDL241 module is a positive/negative input module manufactured by GE Fanuc as part of the Series 90-30 PLC

systems. It operates on a voltage rating of 24 Volts AC/DC and it features a single group of 16 input points all located in a

common power input terminal. This module is designed and intended for use with AC or DC operator-supplied input power,

so it can have either positive or negative logic characteristics while in the DC input mode. These input characteristics are

appropriate for a wide range of user-supplied input units, like pushbuttons, electronic proximity switches, and limit switches.

The IC693MDL241 module comes with an input voltage ranging between 0 and 30 Volts AC or DC at a frequency of 50 to 60

Hertz and a typical input current of 7 milliamps at the rated voltage. It has an on-state voltage of 11.5 to 30 Volts AC or DC

and an off-state voltage of 0 to 4 Volts AC or DC.

The GE IC693MDL241 module comes with a minimum on-state current of 3.2 milliamps, and a maximum off-state current of 1

Amp, with a response time of 28 milliseconds when it is off and one of 12 milliseconds when it is on. When the current passes

through the input point, the result in the input status table is Logic 1 (%I). The operators can provide the necessary power to

run the field devices, or use the isolated 24 Volts DC output voltage source as the power supply to the DC inputs. The GE Fanuc

IC693MDL241 features LED on/off status indicators for each of the points on the top of the module. The LED block hosts the

LEDs in 2 horizontal rows, each with 8 green LEDs. The top LED row is labeled from A1 to A8 for points 1 to 8 while the bottom

row is labeled from B1 to B8 for points 9 to 16.
