GE FANUC IC693MDL632 Positive/Negative Input Module 125VDC Rated 0 - 150V DC Input

GE FANUC IC693MDL632 TYPICAL SCAN RATE SERIES 90-30 PROCESSOR MODULE



Technical Specifications for IC693MDL632

Brand: GE Fanuc
Series: Series 90-30
Part Number: IC693MDL632
Brand: GE Intelligent Platforms/GE Fanuc
Product Type: Input Module
Logic: Positive/Negative
Rated Voltage: 125 Volts DC

Input Voltage: Range 0 to 150 Volts DC
Inputs: 8
Isolation between field side and logic side: 1500 Volts
Isolation between groups: 500 Volts
On-State Voltage: 90 to 150 Volts DC
Off-State Voltage: 0 to 30 Volts DC
On-State Current: 3.1 mA

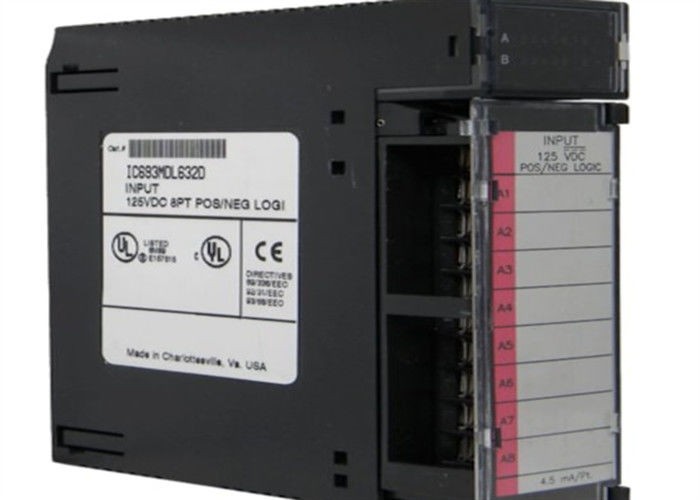

About IC693MDL632

The IC693MDL632 positive/negative logic input module has a rated voltage of 125 Volts DC, and it is manufactured as part of the GE

Series 90-30 PLC product line. It features 8 separate input points distributed evenly into 2 isolated groups, with each group having commons.

These commons are not tied together or connected in the body of the module. This module is compatible with the Series 90-30 PLCs or

Programmable Logic Controllers and it can be used after installing the module in a 5-slot or 10-slot I/O baseplate. To run the field devices,

the users of the IC693MDL632 module must supply the power to them. The input devices must also be linked, and this connection is made

between the input and the power bus of the module. There are also several input devices that are well matched with the different input

characteristics, for instance, pushbuttons, limit switches, and electronic proximity switches, among others.

The GE Fanuc IC693MDL632 logic input module comes with either positive or negative logic characteristics depending on the design. The

module can sink current to the operator's common or negative power bus from the input device's positive logic. The IC693MDL632 module

can also get its current from an input device, and then send it to positive power bus's negative logic. At the top of this module, there is an

LED block that has several indicators in 2 horizontal rows. The module has only 8 input points, and it uses the top row of LEDs to show the

status of all 8 of these points such as the "ON" or "OFF" status of each point. This module features a hinged door and an insert between the

inner and outer door surfaces.
