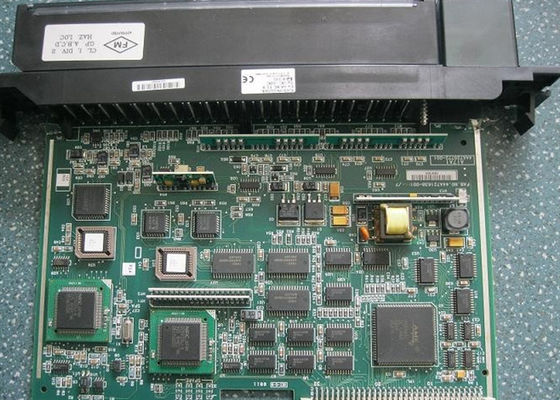

GE FANUC IC693MDL645 Discrete Input Module 0-30 VDC Positive / Negative Type

GE FANUC IC693MDL645 TYPICAL SCAN RATE SERIES 90-30 PROCESSOR MODULE



Technical Specifications for IC693MDL645

Internal Power Used 80 mA at 5 VDC, 125 mA at 24 VDC Isolated
LED indicators Sixteen (16) LED indicators (1 per channel)
Compatible baseplate Series 90-30 5-slot or 10 slot baseplate
Connector Type Terminal Block (20 screws), included with module.
Module width Single (1) slot
Number of points Sixteen (16)
Input Current (mA) 7 mA
Nominal Input voltage 24VDC
Input Voltage Range 0-30 VDC
Module type Positive / Negative Discrete input
Brand GE Fanuc

Part Number IC693MDL645
Series Series 90-30
Module type Discrete input
Power Type DC
Input Voltage Range 0-30 VDC
Input Current (mA) 7
Number of points 16
Response Time (ms) 7 ms on, 7 ms off
Connector Type Terminal Block (20 screws), included with module.
Product Lifecycle Status* Discontinued/Obsolete





About IC693MDL645

The GE Fanuc module with part number IC693MDL645 is a Series 90-30 Positive / Negative logic input module. This module is

used to interface input devices such as pushbuttons, limit switches, proximity switches, auxiliary contacts and other similar

devices.
The IC693MDL645 is provided with a single input group, having One (1) common terminal. It can accept external voltage signals

ranging 0-30 VDC with nominal voltage of 24VDC while the input current requirement is 7 mA at rated voltage with field side and

logic side isolation rated at 1500 Volts.

The IC693MDL645 has an ON-state voltage rating of 11.5 - 30 VDC and OFF state voltage of 0-5VDC. Similarly, the ON-state

current is 3.2 mA, minimum and 1.1 mA OFF-state current. The module’s ON-response time is 7 ms for both ON and OFF states.

This module is installed to an available slot of a 90-30 PLC system 5-slot or 10-slot baseplate. It draws current from the

backplane with 80 mA (all inputs on) from 5 volt bus on backplane and 125 mA from the Isolated 24 volt backplane bus or from

user supplied power. Internally, the received voltage signal of the module is stored to the %I status table.

The IC693MDL645 has status LED indicators installed to depict the energization state of each channel. These indicators may

also be used as troubleshooting reference, confirming if the signal voltage from the external connected device has reached the

specific input point of the module. This module uses a 20-slot removable terminal block and provided with circuit information,

printed on the hinged dorr of the module.

The GE Fanuc IC693MDL645 module comes with an input voltage range of 0 to 30 Volts DC, while the input current is rated at

7 milliamps. The response time is rated as 7 milliseconds on and 7 milliseconds off while the trigger voltage is 11.5 to 30 Volts.

The connector type is rated as the terminal block type and it uses up to 20 screws that are all included with the module.

The internal power is rated as 80 milliamps of current at 5 Volts DC with 125 milliamps of current at 24 Volts DC isolated voltage.
