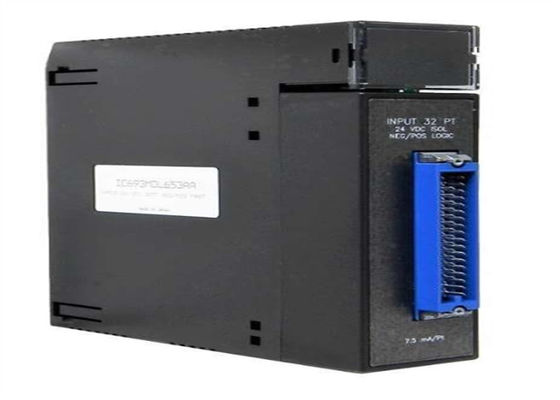

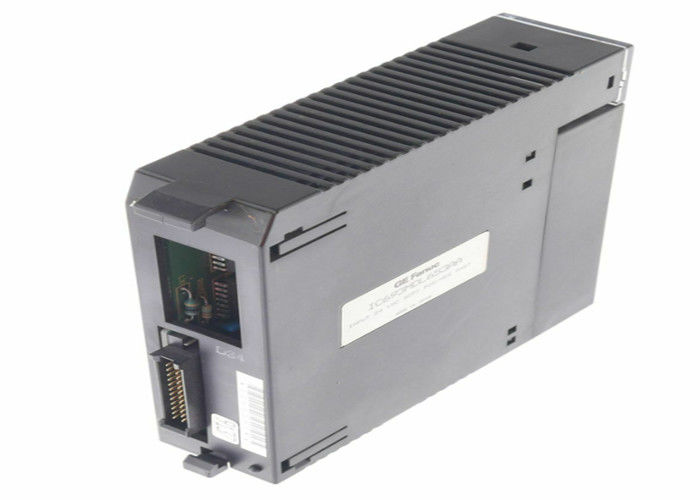

GE FANUC IC693MDL653 Discrete Input Module 24V DC Negative / Positive Logic Module

GE FANUC IC693MDL653 TYPICAL SCAN RATE SERIES 90-30 PROCESSOR MODULE



Technical Specifications for IC693MDL653

Brand GE Fanuc
Series Series 90-30
Manufacturer GE Fanuc (Former); Emerson Automation (Current)
Manufacturer GE Fanuc
Part Number IC693MDL653
Product Description Discrete input module
Series Series 90-30
No of Channels Thirty-Two (32)
Rated Voltage 24 Volts DC
Part Number IC693MDL653
Input Voltage Range 19.2 - 28.8 VDC
No. of input groups Four (4)
No. of groups Four (4)
Inputs per Module 32 (four groups with two commons per group)
No. of inputs per group Eight (8)
No. of channels per group Eight (8)
No of common terminal per group Two (2)
Input signal range 19.2 VDC - 26.4 VDC
Isolation 1500 Volts between field side and logic side
Isolation 1500 VAC between field side and logic side
Input Current 7.5 mA at rated voltage
Nominal Input voltage 24 VDC
Nominal output voltage 24 VDC
Input current 7.5 mA per channel
On-state Voltage 15 Volts DC minimum
Current draw 5 mA
Current draw 5 mA @ 5VDC
Off-state Voltage 6 Volts DC maximum
On State Voltage 15 VDC
Off response time, maximum 2 ms
On-state Current 4.5 mA minimum
Off State voltage 6 VDC
On–state Voltage 15 VDC
Off-state Current 2 mA maximum
On state current 4.5 mA
Off–state Voltage 6 VDC
On response Time 2 ms maximum
On–state Current 4.5 mA
Off response Time 2 ms maximum
Off state current 2 mA
Internal Power Consumption 5 mA (16 inputs on) from 5 volt bus on the backplane
On response time, typical 2 ms
On response time, maximum 2 ms
Product Lifecycle Status Discontinued/Obsolete


About IC693MDL653

The IC693MDL653 is a Negative / Positive logic discrete input module that is part of the Series 90-30

Programmable Logic Controller (PLC) series. This module is a high-density discrete input module that

accepts an input voltage range of 19.2 - 28.8 VDC with a nominal voltage of 24 VDC and an input current

of 7.5 mA at rated voltage. This module is a high-density input module that comes with Thirty-Two (32) input

channels, arranged in Four (4) groups of Eight (8) inputs each with each group provided with Two (2) common

terminals. With support for positive and negative logic and wiring and a number of input groups, wiring

combinations can be implemented to this module. With this, operational flexibility is achieved and a form

of input isolation is established as input groups may continue to operate even if other groups have

malfunctioned. The IC693MDL653 has a maximum on-state voltage of 15 VDC; an Off-state voltage of 6VDC;

a maximum On-state current of 4.5 mA and a maximum Off-state current of 2 mA. The module’s On

and Off response times are typical which is 2 ms, maximum. This module has a backplane current draw

of 5 mA with all 16 inputs energized. The IC693MDL653 is installed to any I/O slot of a 5-slot or 10-slot

baseplate. High-Density modules such as this module require the use of pre-wired cables for fast and

error-free signal connection. Wiring connectors include a mating connector that directly connects to the

module with flying leads on the other end for termination to I/O terminal blocks.

The IC693MDL653 input controller is part of the programmable logic controller (PLC) system manufactured by

GE Fanuc Automation. The IC693MDL653 controller is classified under Series 90-30 of the GE Fanuc PLCs.

The IC693MDL653 input controller is built to ensure ease of installation and configuration.
