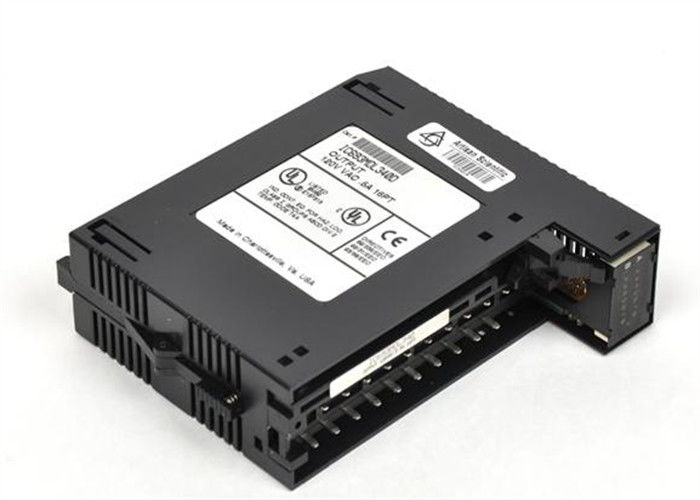

GE FANUC IC693MDL730 Positive Logic Output Module 12 To 24 VDC

GE FANUC IC693MDL730 TYPICAL SCAN RATE SERIES 90-30 PROCESSOR MODULE



Technical Specifications for IC693MDL730

Brand GE Fanuc
Series Series 90-30
Manufacturer GE Fanuc
Part Number IC693MDL730
Series Series 90-30
Part Number IC693MDL730
Lifecycle status Active
Product Description Discrete output module
Power Type DC
No of Channels Eight (8), single group
Output power voltage 12 to 24 VDC
Number of Points 8
Isolation: 1500 volts between field side and logic side;
Load Current per Point 2.0 A

Output voltage range 12-24 VDC with (+ 20%, -15%)
ON Response Time (ms) 2 milliseconsds
Nominal output voltage 12 / 24 VDC
OFF Response Time (ms) 2 milliseconds
Output current 2 Amperes per point; 2 Amperes per fuse at 60 Degree Celsius; 4 Amperes per fuse at 50 Degree Celsius.
Output type Transistor
Maximum inrush current 9.4 A For 10 ms
Product Lifecycle Status* Discontinued/Obsolete
Current draw 55 mA (all outputs active)
On response time, maximum 2 ms
Off response time, maximum 2 ms
Output Voltage Drop 1.2 volts, maximum
Off-state Leakage 1 mA maximum





About IC693MDL730

The IC693MDL730 is a Positive logic output module from the Series 90-30 Programmable Logic Controller (PLC) product family of GE Fanuc,

now under Emerson Automation. This module features Eight (8) discrete output channels in a single group, delivering an output voltage range

of 12-24 VDC with + 20%, -15% ripple. Each channel delivers an output current of 2 Amperes per point; 2 Amperes per fuse at 60 Degree

Celsius; 4 Amperes per fuse at 50 Degree Celsius. The IC693MDL730 comes with isolation between the field side and logic side amounting to

1500 Volts. Output channels have an inrush current rating of 9.4 Amperes for 10 ms; maximum output voltage drop of 12 Volts; maximum

off-state leakage current of 1 mA along with a typical On and off response time of 2ms for each transition. This module occupies a single slot of

the 90-30 baseplate and is compatible with any I/O slot of a Series 90-30 Five (5) or Ten (10) slot baseplate. It has a current draw of 55 mA

when all outputs are energized, sourced from the 5 VDC bus residing on the backplane. The IC693MDL730 is compatible for use with a variety

of electrical loads particularly motor starters, solenoids, and indicators. An external power supply must be wired to the module to provide

operational power. Status LED indicators are installed to the module’s front panel which includes blown fuse indicator, module fault indicator,

and Eight (8) channel indicators, individually assigned to each output channel depicting the operational state of each output point. This module

comes with a removal terminal board for simplified maintenance.

The IC693MDL730 PLC module comes with a 12 to 24 Volts DC voltage rating with positive logic and 2 Amps of output current. The component

features DC power and it comes with 8 points. The unit features 2 Amps of load current per point while the response time is rated as 2

milliseconds ON and 2 milliseconds OFF. The output type is transistor output and the module comes with positive polarity. The connector type is

a terminal block with 20 screws that are included with the module.
