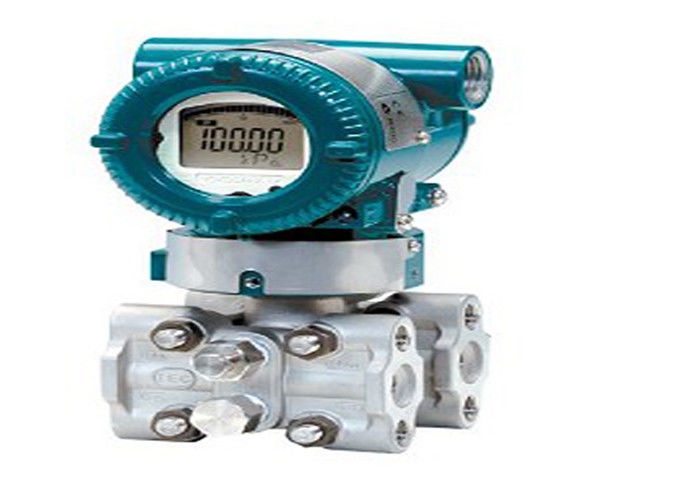

Yokogawa EJA310A-EMS4A-92NA/D4 Absolute Pressure Transmitters

Yokogawa EJA310A-EMS4A-92NA/D4 Absolute Pressure Transmitters

Manufacturer : Yokogawa

Product No. : EJA310A-EMS4A-92NA/D4

Product Type : Absolute Pressure Transmitters

Output Signal : E = 4 to 20 mA DC with digital communication (HART protocol, see IM 01C22T01-01E)

Measurement span (capsule) : M = 1.3 to 130 kPa {9.6 to 960 mmHg}

Wetted parts material : S

Body : SCS14A

Capsule : SUS316L

Vent plug : SUS316

Process connections : 4 = with 1/2 NPT female process connector

Bolts and nuts materia : A

Maximum working pressure

SCM435

L capsule : 10 kPa abs {75 mmHg abs}

M capsule : 130 kPa abs {960 mmHg abs}

A capsule : 3 MPa abs {30 kgf/cm2 abs}

Installation : 9 = Horizontal impulse piping type, left side high pressure

Electrical connection : 2 = 1/2 NPT female, two electrical connections without blind plug

Integral indicator : N = (None)

Mounting bracket : A = SECC Carbon steel 2-inch pipe mounting (flat type)

Weight : 3.9 Kg

Shipping Weight : 8 Kg
