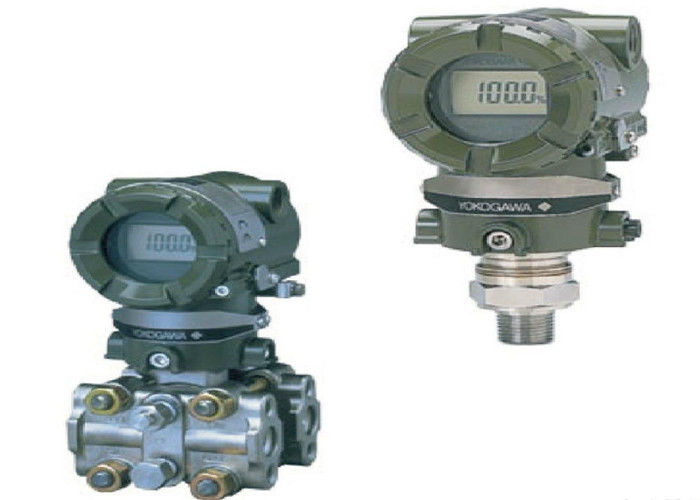

Yokogawa EJA430A-EAS4B-92EA/D3/KU2 Absolute Pressure Transmitters

Yokogawa EJA430A-EAS4B-92EA/D3/KU2 Absolute Pressure Transmitters

SKU E12948-2

The high performance gauge pressure transmitter model EJA430A can be used to measure liquid, gas, or steam pressure. It outputs a 4 to 20 mA DC signal corresponding to the measured gauge pressure. Model EJA430A also features remote setup and monitoring through communications with the BRAIN™ terminal and CENTUM CS™ or μXL™ or HART® 275 host.

Ambient Temperature Limits
(approval codes may affect limits)
−40 to 85 °C (−40 to 185 °F)
−30 to 80 °C (−22 to 176 °F) with LCD Display
Process Temperature Limits
(approval codes may affect limits)
−40 to 120 °C (−40 to 248 °F)
Ambient Humidity Limits
5 to 100 % RH @ 40 °C (104 °F)

Supply & Load Requirements
(Safety approvals can affect electrical requirements)
With 24 V DC supply, up to a 570 Ω load can be used. See Figure 2.
Supply Voltage “◊”
10.5 to 42 V DC for general use and flameproof type
10.5 to 32 V DC for lightning protector (Optional code/A)
10.5 to 30 V DC for intrinsically safe, Type n, nonincendive, or non-sparking type Minimum voltage limited at 16.4 V DC for digital communications, BRAIN and HART
