Rosemount 3051SFA Annubar Flow Meter Top Choice in Need of Accurate Flow Measurement

Product Details:

Place of Origin:	USA
Brand Name:	Rosemount
Certification:	CE
Model Number:	3051SFA Annubar

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	New in original box
Delivery Time:	4-6weeks
Payment Terms:	T/T
Supply Ability:	100

Contact Now

Detailed Product Description

Brand:	Rosemount	Model:	3051SFA Annubar
Process Wetted Material:	316 SST, Alloy C-276	Update Rate:	1 Sec. To 60 Min., User Selectable
Line Size:	2 To 96 In. (50 To 2440 Mm)	Lead Time:	4-6 Weeks

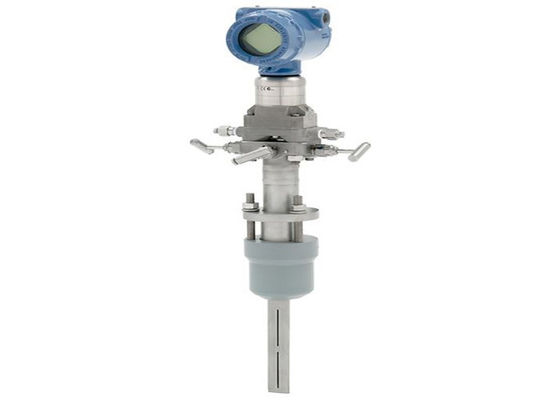

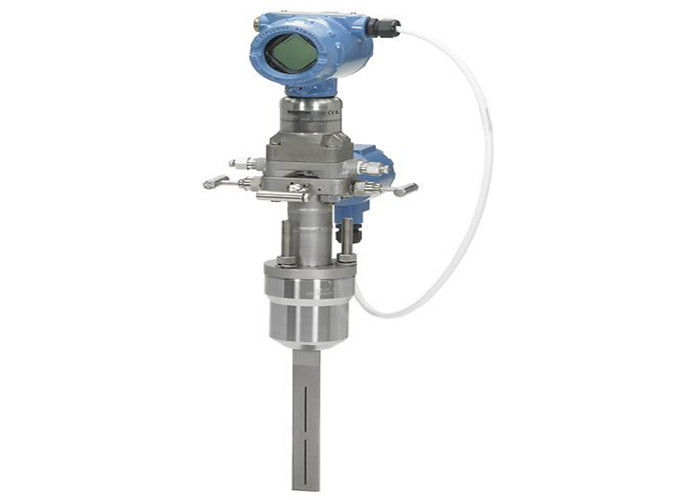

Rosemount™ 3051SFA Annubar™ Flow Meter

Product Description

The Rosemount 3051SFA Annubar Flow Meter is a no-equal solution with a patented, averaging pitot tube that delivers superior measurement accuracy over a wide flow range. Its patented T-shaped sensor is engineered with an integrated thermowell, capable of obtaining measurements via a single pipe penetration while maintaining a small profile in the pipe to reduce permanent pressure loss and increase energy savings. This flow meter is also engineered with built-in flow calculations for fully compensated mass flow measurements and is offered with multiple communication protocols including WirelessHART®.

Specifications
Warranty	Up to 15-year limited warranty
Rangedown	Up to 200:1 (14:1 flow turndown)
Measurement Range	Up to 1000 inH2O (2,48 bar) differential, Up to 3626 psia (250,00 bar) absolute, Up to 3626 psig (250,00 bar) gage
Line Size	2 to 96 in. (50 to 2440 mm)
Output	Differential pressure, static pressure, process temperature, scaled variable, mass flow, volumetric flow, energy flow
Communication Protocol	4-20 mA HART®, WirelessHART®, FOUNDATION™ Fieldbus
Process Wetted Material	316 SST, Alloy C-276
Diagnostics	Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse Line
Certifications/Approvals	SIL 2/3 certified to IEC 61508 by an independent 3rd party, NACE, hazardous location, see full specs for complete list of certifications
Update Rate	1 sec. to 60 min., user selectable
Power Module Life	Up to 10-year life, field replaceable (order separately)
Wireless Range	Long range (225 m), extended range (800 m), remote (225 m) and high-gain remote (1 km)

Features

Designed with built-in flow calculations for direct reporting of fully-compensated mass flow
Advanced diagnostics provide diagnostic coverage to detect abnormal process conditions and electrical loop issues
Callendar-Van Dusen sensor matching improves temperature accuracy enabling best-in-class flow calculations
Ultra for Flow performance class enables optimized flow measurement with a ±0.04% of reading accuracy
T-shape Annubar design features very low permanent pressure loss
Integral thermowell of sensor adds process temperature measurement without additional pipe penetrations
All-welded, SuperModule™ design offers industry-leading accuracy in harsh environments and applications
Flowmeters come fully configured, leak-tested and ready to install right out of the box for fast installation
Sensor stagnation zone positioned to reduce noise, measurement inaccuracies and keeps particulates from clogging
SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
WirelessHART® technology is secure, cost-effective and delivers >99% data reliability without the cost of wiring
SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
