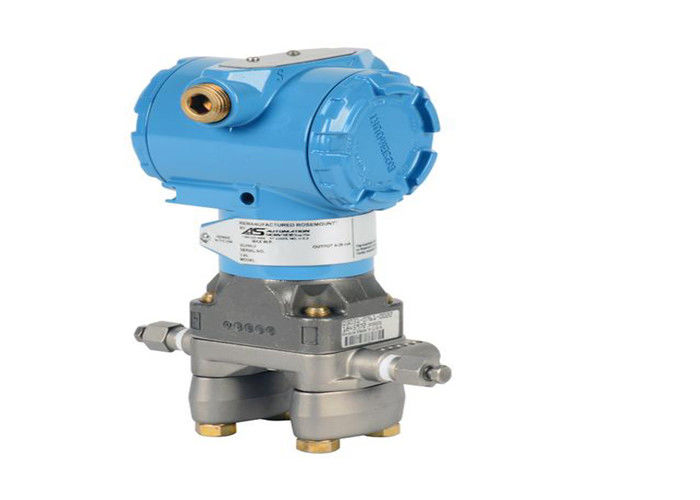

Rosemount 3051CD2A22A1AE5M5Q4 Differential Pressure Flow Transmitter

Manufacturer : Rosemount

Model : 3051CD2A22A1AE5M5Q4

3051C-Transmitter type : Coplanar pressure transmitter

D-Measurement Type : Differential

2-Pressure ranges (range/min. span): Rosemount 3051CD : ?250 to 250 inH2O/2.5 inH2O(?623 to 623 mbar/6,2 mbar)

A-Output : 4-20 mA with digital signal based on HART Protocol

2-Materials of construction:-
Process flange type : Coplanar
Flange material : SST
Drain/vent : SST

2-Isolating diaphragm : 316L SST

A-O-ring : Glass-filled PTFE

1-Sensor fill fluid : Silicone

A-Housing material : Polyurethane-covered aluminum
E5-Product certifications:FM Explosion-proof, Dust Ignition-Proof

M5-Display type : LCD display with Local Operator Interface

Q4-Calibration certificate : Calibration Certificate

Rosemount 3051C Coplanar Pressure Transmitters are the industry standard for differential, gage, and absolute pressure measurement. The coplanar platform enables seamless integration with manifolds, flow, and level solutions. ■ Loop Integrity and Plugged Impulse Line Diagnostics detect issues that might compromise the integrity of the output signal (code DA1). ■ Bluetooth® Connectivity enables efficient, reliable, and safe configuration and maintenance (code BLE). ■ Back-lit Graphical Display with Local Language Capability (code M6). ■ Safety certification and proof testing (code QT and T9).

Specifications and options See the Specifications and options section for more details on each configuration. Specification and selection of product materials, options, or components must be made by the purchaser of the equipment. See the Material selection section for more information.
