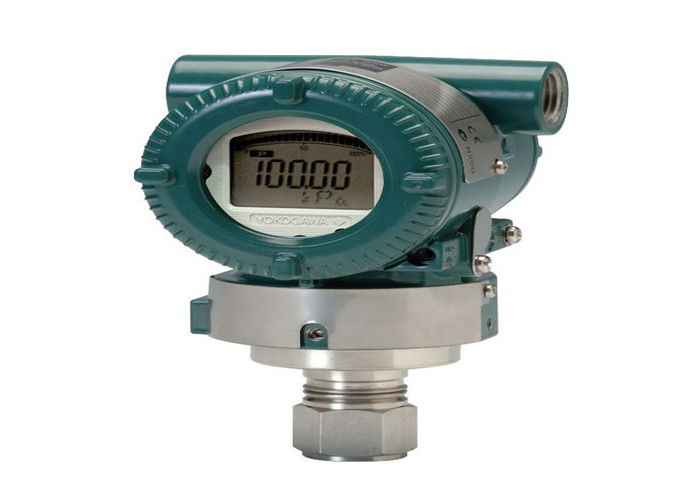

Yokogawa EJA510E-DAS4N-022DN/FF1 Absolute Pressure Transmitter

Yokogawa EJA510E-DAS4N-022DN/FF1 Absolute Pressure Transmitter

Manufacturer : Yokogawa

Product No. : EJA510E-DAS4N-022DN/FF1

Product type : Absolute Pressure Transmitter

Output signal : -D = 4 to 20 mA DC Output with digital communication (BRAIN protocol)

Measurement span (capsule) : A = 10 to 200 kPa (1.45 to 29 psi)

Wetted parts material : S = Process connector 316L SST # , Diaphragm Hastelloy C-276 *3#, Others 316L SST #

Process connections : 4 = 1/2 NPT female

N = Always N

-0 = Always 0

Amplifier housing : 2 = ASTM CF-8M stainless steel*6

Electrical connection : 2 = 1/2 NPT female, two electrical connections without blind plugs

Integral indicator : D = Digital indicator *8

Mounting bracket : N = None

Factory Mutual (FM) : /FF1 = FM Explosionproof Approval *1 Applicable Standard: FM3600, FM3615, FM3810, ANSI/NEMA 250 Explosionproof for Class I, Division 1, Groups B, C and D, Dust-ignitionproof for Class II/III, Division 1, Groups E, F and G, in Hazardous locations, indoors and outdoors (Enclosure: Type 4X) “FACTORY SEALED, CONDUIT SEAL NOT REQUIRED.” Temperature class: T6, Amb. Temp.: –40 to 60°C (–40 to 140°F)

Weight : 2.7 Kg

Shipping weight : 8Kg
