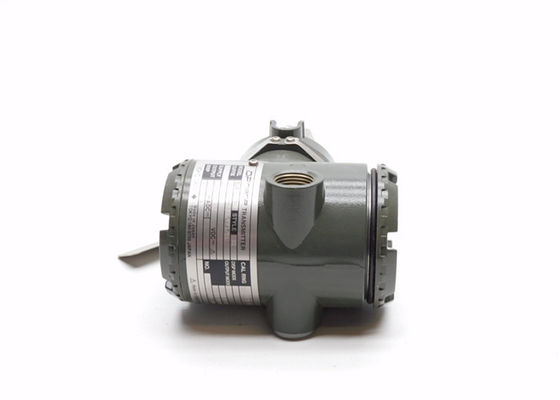

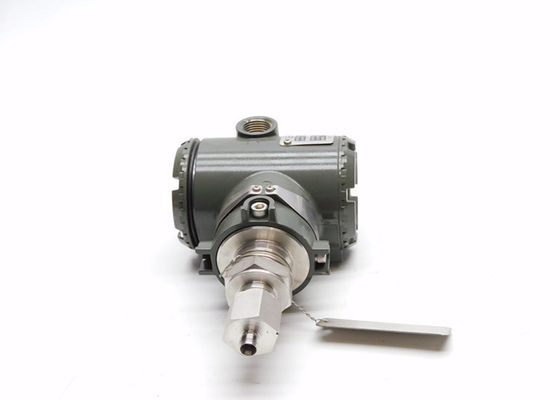

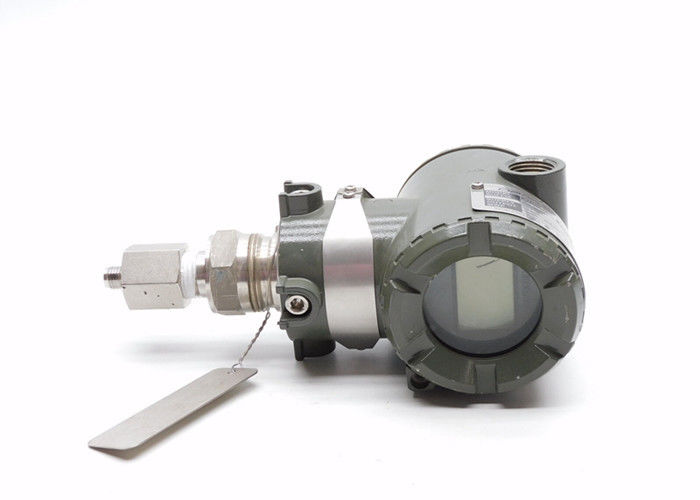

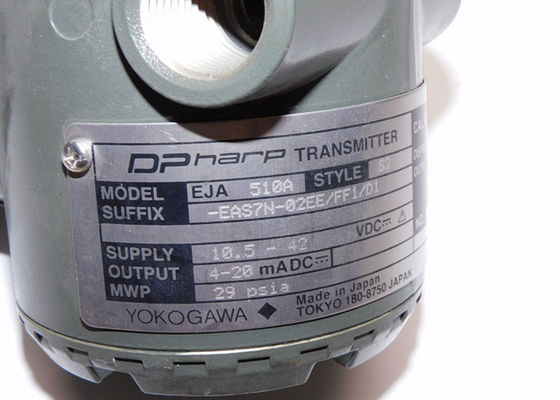

Yokogawa EJA510A-EAS7N-02EE/FF1/D1 Pressure Temperature Transmitter for Applications

Yokogawa EJA510A-EAS7N-02EE/FF1/D1 Pressure Temperature Transmitter

The EJA-A series is Yokogawa's most successful pressure transmitter line. First released in 1991, it continues to offer high performance and high reliability for any application. With an installed base of over 4-1/2 million EJA-A transmitters worldwide, it has a proven track record that makes it a true industry workhorse.

< Ordering Information >

Specify the following when ordering

1. Model, suffix codes, and optional codes

2. Calibration range and units: 1) Calibration range can be specified with range value specifications up to 5 digits (excluding any decimal point) for low or high range limits within the range of -32000 to 32000. 2) Specify only one unit from the table, ‘Settings when shipped.’

3. Select linear or square root for output mode and display mode. Note: If not specified, the instrument is shipped set for linear mode.

4. Select normal or reverse for operation mode Note: If not specified, the instrument is shipped in normal operation mode. 5. Display scale and units (for transmitters equipped with integral indicator only) Specify either 0 to 100 % or engineering unit scale and ‘Range and Unit’ for engineering units scale: Scale range can be specified with range limit specifications up to

5 digits (excluding any decimal point) for low or high range limits within the range of -19999 to 19999. 6. Tag Number (if required)
