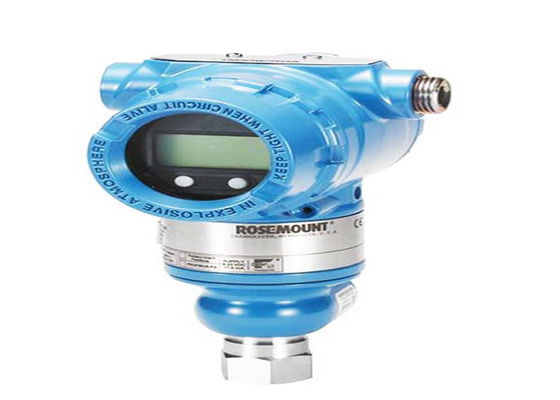

Rosemount 3051TG2A2B21BB4I1Q4Q8M5T1P1V5 Gage and Absolute Pressure Transmitter

Rosemount 3051TG2A2B21BB4I1Q4Q8M5T1P1V5 Gage and Absolute Pressure Transmitter

• Manufacturer : Rosemount
• 3051TG2A2B21BB4I1Q4Q8M5T1P1V5
• 3051T-Transmitter Type : Pressure Transmitter
• Pressure Type : Gage
• Pressure Upper Range Limit - Configurable Description : 150 psi (10,3 bar)
• Transmitter Output : 4–20 mA with Digital Signal Based on HART Protocol
• 2B-Process Connection Style : 1/2–14 NPT Female
• Isolating Diaphragm : 316L SST
• Sensor Fill Fluid : Silicone
• Housing Material : Polyurethane-covered Aluminum
• Conduit Entry Size : M20 × 1.5 (CM20)
• B4-Mounting Bracket : Bracket for 2-in. Pipe or Panel Mounting, All SST
• I1-Product Certifications : ATEX Intrinsic Safety and Dust
• Q4-Calibration Certification : Calibration Certificate
• Q8-Material Traceability Certification:Material Traceability Certification per EN 10204 3.1 NOTE: This option applies to the process connection only
• M5 : Display Type : LCD display
• T1 : Transient Terminal Block : Transient Protection Terminal Block
• P1 : Pressure Testing : Hydrostatic Testing with Certificate
• V5 : Ground Screw : External Ground Screw Assembly
• Transmitter Weights without Options : 3051T : 1.4 Kg

Description of Rosemount 3051/T :

Rosemount 3051T In-Line Pressure Transmitters are the industry standard for gage and absolute pressure measurement. The in-line, compact design allows the transmitter to be connected directly to a process for quick, easy and cost effective installation.

■ Loop Integrity and Plugged Impulse Line Diagnostics detect issues that might compromise the integrity of the output signal (code DA1).
■ Bluetooth® Connectivity enables efficient, reliable, and safe configuration and maintenance (code BLE).
■ Back-lit Graphical Display with Local Language Capability



In the Features:

Rosemount™ 9295 Process Flow Meter

• Conditioning Orifice Technology eliminates the need for straight pipe run which allows installation at grade level or in difficult piping configurations

• Complete solution arrives assembled, configured and leak-checked, reducing on-site installation time and cost

• Roddable design allows removal of impulse line plugging without the need for process shutdown

• All-welded design eliminates potential leak points

• Integral temperature sensor allows for a fully compensated flow measurement without the need for additional pipe penetrations or wake frequency calculations

• Single piece machined body design without welds in the flow stream eliminates concerns with primary element breakage

• Simplify SIS compliance with available redundant transmitter options​

• The simplicity and reliability of a DP Flow measurement without the hassle associated with a traditional installation

Rosemount 3051TG/TA
■ Range 0: 60 psi (4.14 bar)
■ Range 1: 750 psi (51.71 bar)
■ Range 2: 1500 psi (103.42 bar)
■ Range 3: 1600 psi (110.32 bar)
