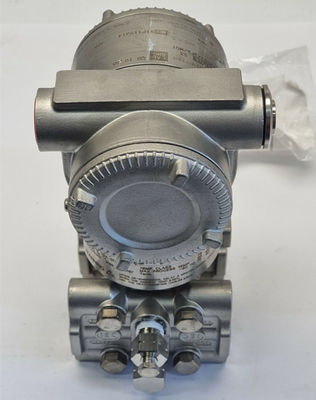

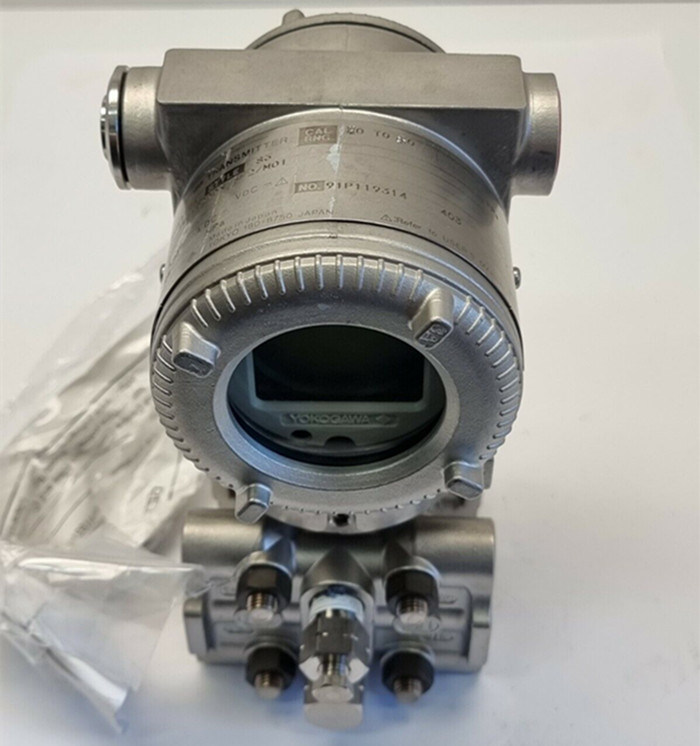

Yokogawa EJX110A Differential Pressure Transmitter EJX110A-FMS5C-92DDN .5-100kpa

F : Digital communication (FOUNDATION Fieldbus protocol, refer to GS 01C25T02-01EN)
M : 0.5 to 100 kPa (2 to 400 inH2O)
S : Wetted parts material (See below)
5 : without process connector (1/4 NPT female on the cover flanges)

C : Bolt and nut material - 660 SST

9 : Horizontal piping and left side high pressure

2 : Amplifier housing ASTM CF-8M stainless steel

D : M20 female, two electrical connections and a SUS316 blind plug

D : Digital indicator

N : No mounting bracket

The EJA-A series is Yokogawa's most successful pressure transmitter line. First released in 1991, it continues to offer high performance and high reliability for any application. With an installed base of over 4-1/2 million EJA-A transmitters worldwide, it has a proven track record that makes it a true industry workhorse.

The EJA110A is the Traditional-mount Differential Pressure Transmitters in the series.

EJA110A features include:

• 0.065% Accuracy

• 0.1% Stability per 5 years

• 2,300 psi MWP
