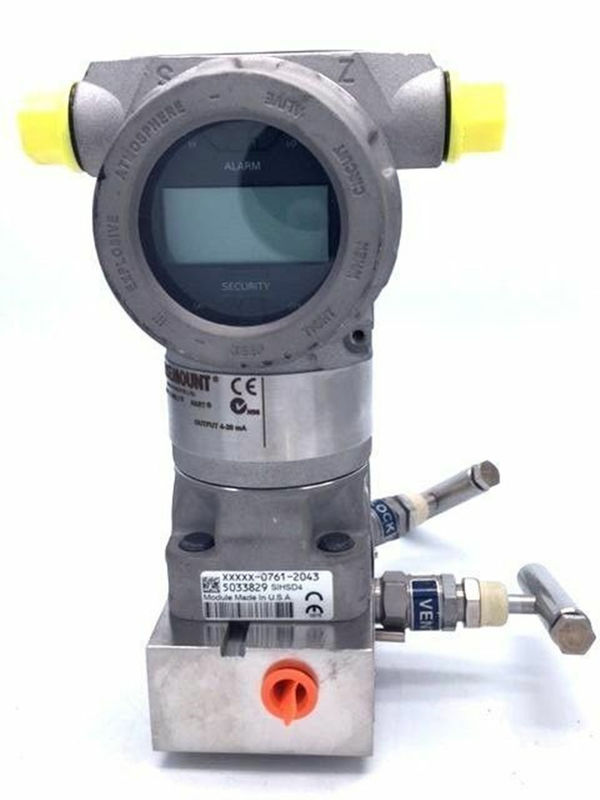

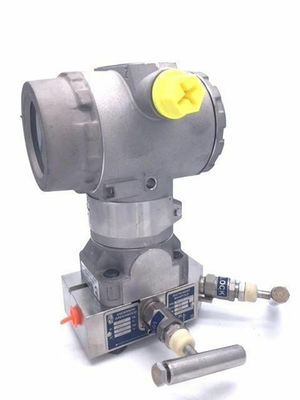

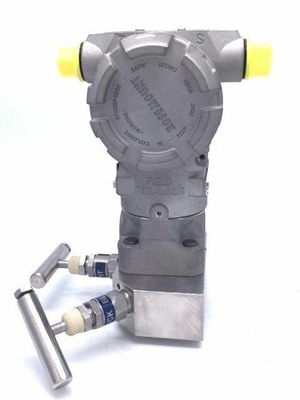

Rosemount 3051CG4A03A1KM6I7L4P1Q4Q8A8089 Pressure Transmitter
Brand: Rosemount
Model: 3051CG4A03A1KM6I7L4P1Q4Q8A8089
MAX W.P: 300PSI /20.7 BAR
SUPPLY: 10.5-30VDC
OUTPUT:4-20mA
CAL:0 TO 1000 KPAG
Exia IIC T5(-60C≤Tamb≤40C)
Exia IC T4(-60C≤Tamb≤70C)
Ui=30 Vdc
li=200 mA
IECEx BAS 09.0076X
Pi=0.9W
Ci=0.012μF
3031-60-0070/AB
Benefit from industry-leading performance and patented technology with the Rosemount 3051 Coplanar Pressure Transmitter. With over 10 million devices installed, this pressure transmitter family offers an all-in-one solution for pressure, level and flow measurement. Engineered with a coplanar flange for installation and application flexibility, this transmitter is easy to install and designed with direct process mounting capability for cost-effective installation and efficiency.
Specifications
Warranty : Up to 5-year limited warranty
Rangedown : Up to 150:1
Communication Protocol :
4-20 MA HART®, WirelessHART®, FOUNDATION™ fieldbus, PROFIBUS® PA, 1-5 V Low Power HART®
Measurement Range :
Up to 2000 psi (137,89 bar) differential
Up to 2000 psig (137,89 bar) gage
Up to 4000 psia (275,79 bar) absolute
Process Wetted Material : 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated 316L SST, Gold-plated Alloy 400
Diagnostics : Basic Diagnostics, Process Alerts, Loop Integrity Diagnostics, Plugged Impulse Line Diagnostics
Certifications/Approvals : SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE®, hazardous location, see full specs for complete list of certifications
Wireless Update Rate : 1 sec. to 60 min., user selectable
Power Module Life : Up to 10-year life, field replaceable (order separately)
Wireless Range : Internal antenna (225 m)
Description of Rosemount :
Our brand:
Order Process:
1, First, send us the brand, model code/pic of the nameplate, the quantity for inquiry. Then we will send the quote to you. after confirming the model and the quantity, then we will the PI to you.
2, You can transfer by Paypal/ Western Union/Trade assurance/ T/T. When we received the payment, then we will start to prepare the order for you asap.
3, We can according to your shipment to ship out the goods, Or we also can help you to ship out the goods directly. And the tracking number will send you by the next day.
4., Usually for our inventory goods only need to take about 3-5 days.
5. If you also have any questions, you can ask me any time, right below is my contact.
