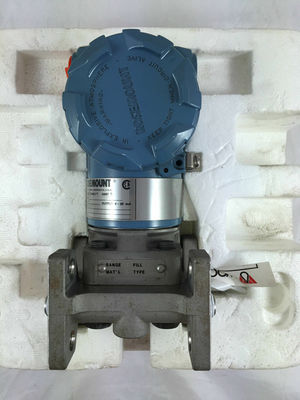

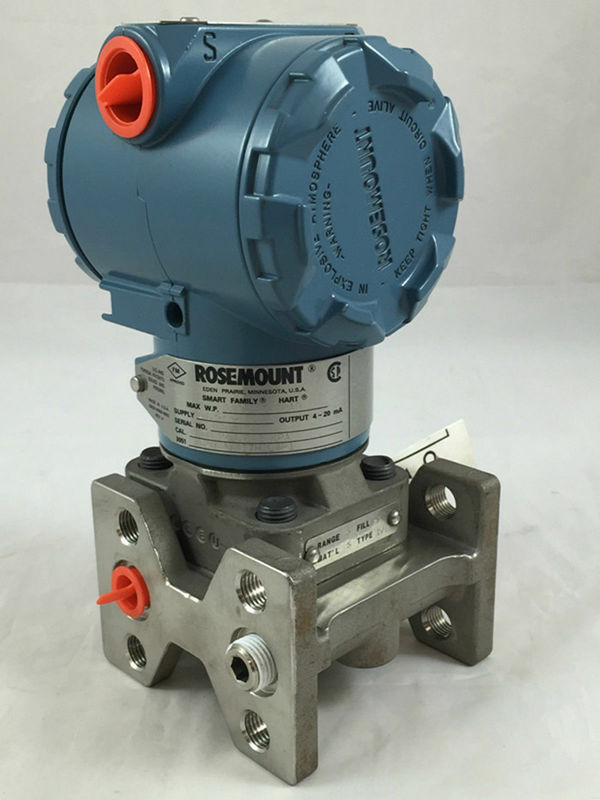

Rosemount 3051CG4A03A1KM6I7L4P1Q4Q8A8089 Pressure Transmitter
Brand: Rosemount
Model: 3051CG3A02A1AI7H2L4P1
MAX W.P: 36PSI /2.5 BAR
SUPPLY: 10.5-55VDC
OUTPUT:4-20mA
CAL:0 TO 248.642 KPA

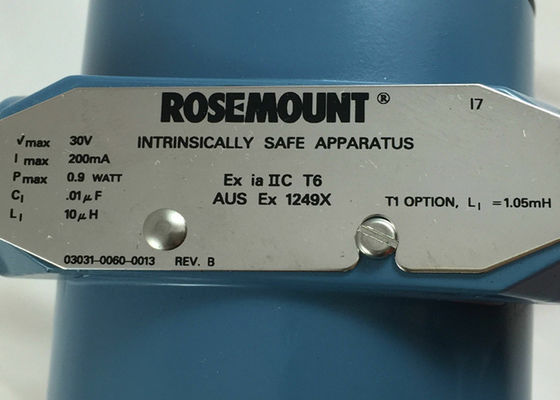

max : 30V
I max: 200mA
P max: 0.9 WATT
CI: .01μF
LI: 10μH
T1 OPTION,L1=1.05mH
Ex iaIIC T6
Benefit from industry-leading performance and patented technology with the Rosemount 3051 Coplanar Pressure Transmitter. With over 10 million devices installed, this pressure transmitter family offers an all-in-one solution for pressure, level and flow measurement. Engineered with a coplanar flange for installation and application flexibility, this transmitter is easy to install and designed with direct process mounting capability for cost-effective installation and efficiency.
Specifications
Warranty : Up to 5-year limited warranty
Rangedown : Up to 150:1
Communication Protocol :
4-20 MA HART®, WirelessHART®, FOUNDATION™ fieldbus, PROFIBUS® PA, 1-5 V Low Power HART®
Measurement Range :
Up to 2000 psi (137,89 bar) differential
Up to 2000 psig (137,89 bar) gage
Up to 4000 psia (275,79 bar) absolute
Process Wetted Material : 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated 316L SST, Gold-plated Alloy 400
Diagnostics : Basic Diagnostics, Process Alerts, Loop Integrity Diagnostics, Plugged Impulse Line Diagnostics
Certifications/Approvals : SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE®, hazardous location, see full specs for complete list of certifications
Wireless Update Rate : 1 sec. to 60 min., user selectable
Power Module Life : Up to 10-year life, field replaceable (order separately)
Wireless Range : Internal antenna (225 m)
