Name: Rosemount™ 3144P Temperature Transmitter 4-20 mA /HART™ FOUNDATION™ Fieldbus protocol
Brand: Wisdomlong Technology CO.，LTD
SKU: 3144P
Price: 1.00 USD
Availability: InStock

Home Products Pressure Temperature Transmitter

Rosemount™ 3144P Temperature Transmitter 4-20 mA /HART™ FOUNDATION™ Fieldbus protocol

Product Details:

Place of Origin:	USA
Brand Name:	Rosemount
Certification:	CE
Model Number:	3144P

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	New in original box
Delivery Time:	4-6weeks
Payment Terms:	T/T
Supply Ability:	100

Contact Now

Detailed Product Description

Brand:	Rosemount	Model:	3144P
Lead Time:	5-8 Weeks	Packing:	Carton
Calibration Options:	Transmitter-sensor Matching	Housing:	Dual-compartment Field Mount

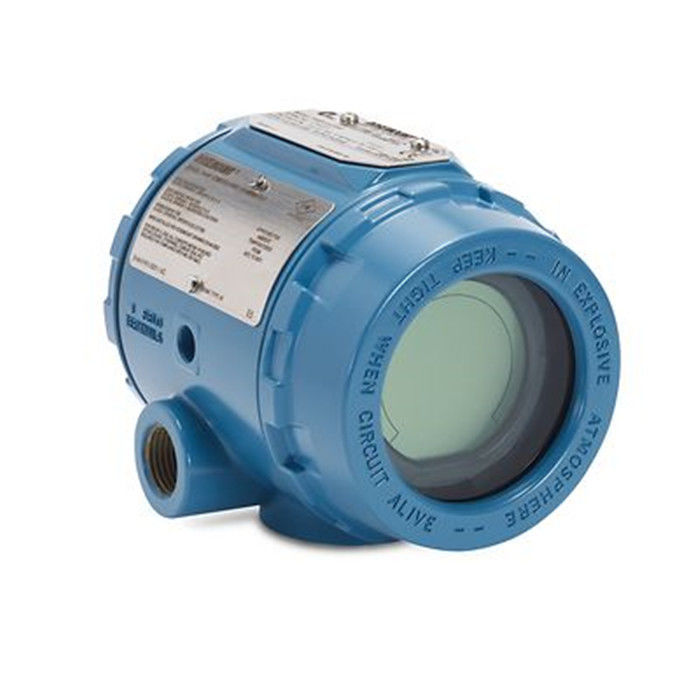

Rosemount™ 3144P Temperature Transmitter

Product Description

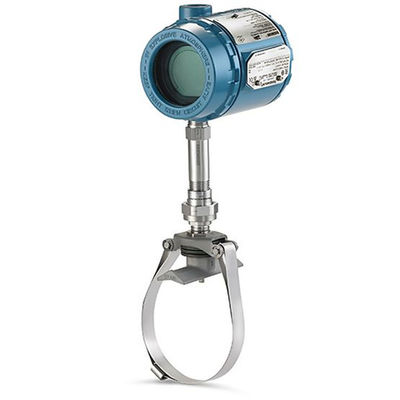

The Rosemount 3144P Temperature Transmitter provides industry-leading accuracy, stability and reliability for your temperature measurements. It features a dual-compartment housing to ensure reliability and advanced diagnostics to keep your measurement point up and running. When combined with Rosemount X-well™ Technology and the Rosemount 0085 Pipe Clamp sensor, this transmitter can provide accurate measurement of process temperature, eliminating the need for a thermowell or process penetration.

Specifications

Input	Dual and single sensor capability with universal sensor inputs (RTD, T/C, mV, ohms)
Output Signal	4-20 mA /HART™ protocol, FOUNDATION™ Fieldbus protocol
Housing	Dual-compartment field mount
Display/Interface	Large LCD display with percent range graph and buttons/switches
Diagnostics	Basic diagnostics, Hot Backup™ capability, sensor drift alert, thermocouple degradation, min/max tracking
Calibration Options	Transmitter-sensor matching (Callendar-Van Dusen constants), custom trim
Certifications/Approvals	SIL 2/3 certified to IEC 61508 by an independent 3rd party, hazardous location, marine type, see full specs for complete list of certifications

Features

Industry-leading accuracy and reliability for best performance in critical control and safety applications
Transmitter-sensor matching improves measurement accuracy up to 75%
5-year long-term stability extends calibration intervals to reduce trips to the field
Rosemount X-well Technology measures temperature without a process penetration for reduced design, installation and maintenance costs
Dual compartment housing provides superior protection in harsh environments
Hot Backup™ capability and sensor drift alert utilizing dual sensors ensure measurement integrity
Thermocouple degradation diagnostic monitors thermocouple health to detect degradation before failure
Minimum and maximum temperature tracking allows monitoring of temperature extremes for easy troubleshooting
Transmitter supports multiple protocols for integration in many host environments across many industries
Device dashboards provide easy interface for simplified device configuration and diagnostic troubleshooting
