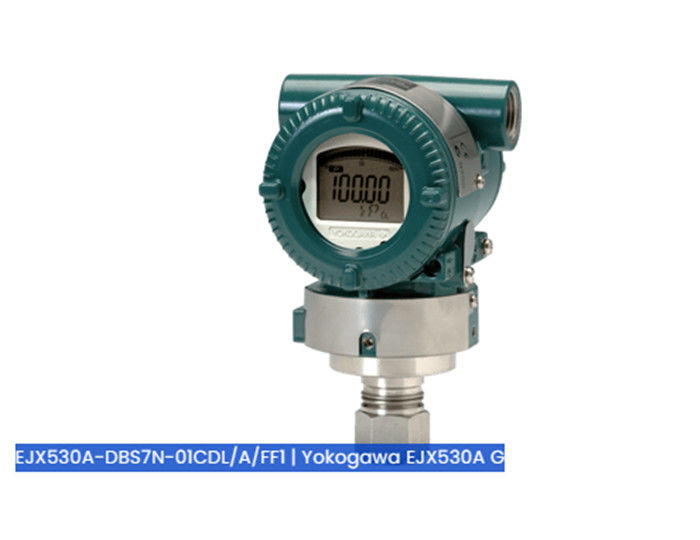

EJX530A-DBS7N-01CDL/A/FF1 Yokogawa EJX530A Gauge Pressure Transmitter

• Model: EJX530A - Gauge pressure transmitter
• Output signal: -D - 4 to 20 mA DC Output with digital communication (BRAIN protocol)
• Measurement span (capsule): B - 0.04 to 2 MPa (5.8 to 290 psi)
• Wetted parts material?: S -
  Process connection: 316L SST*;
  Diaphragm: Hastelloy C-276?*
• Process connections: 7 - 1/2 NPT male
• N: Always N
• -0: Always 0
• Amplifier housing: 1 - Cast aluminium alloy
• Electrical connection: C - G1/2 female, two electrical connections and a 316 SST blind plug
• Integral indicator: D - Digital indicator
• Mounting bracket: L - 316 SST 2-inch pipe mounting
• Optional Codes: /FF1
  Factory Mutual (FM) Explosionproof Approval?*
  Applicable Standard: FM3600, FM3615, FM3810, ANSI/NEMA 250
  Explosionproof for Class I, Division 1, Group B, C, and D, Dust-ignitionproof for Class II/III, Division 1, Group E, F, and G, in Hazardous locations, indoors and outdoors (NEMA 4X)
  "FACTORY SEALED, CONDUIT SEAL NOT REQUIRED."
  Temperature class: T6, Amb. Temp.: 40 to 60?C ( 40 to 140?F)?*
