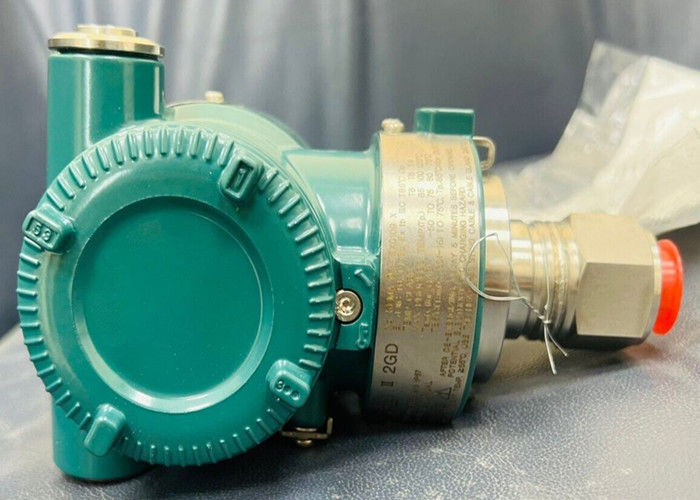

Yokogawa EJX530A-FDS4N-01DDL/KF22/D3/T08/M15/A1/EE/DG1 DP Harp Transmitter

1. Users must consider the characteristics of selected wetted parts material and the influence of process fluids. The use of inappropriate materials can result in the leakage of corrosive process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the diaphragm itself can be damaged and that material from the broken diaphragm and the fill fluid can contaminate the user's process fluids. Be very careful with highly corrosive process fluids such as hydrochloric acid, sulfuric acid, hydrogen sulfide, sodium hypochlorite, and high-temperature steam (150?C [302?F] or above). Contact Yokogawa for detailed information of the wetted parts material.
2. Hastelloy C-276 or ASTM N10276.
3. Lower limit of ambient temperature is -15?C (5?F) when /HE is specified.

The EJX-A series is Yokogawa's premium performance line of DPharp transmitters. Released in 2004, it offers the performance and stability needed in demanding applications. The EJX-A series performance makes it the thoroughbred of the DPharp family of pressure transmitters.

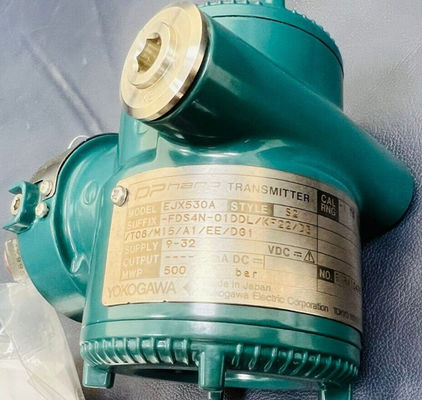

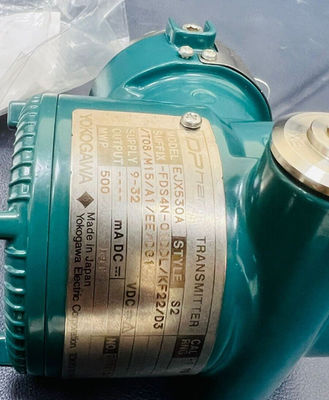

The EJX530A is an In-Line Gauge Pressure Transmitter in the series.

EJX530A standard features include:

• ± 0.04% Accuracy
• ± 0.1% per 15 years Stability
• 90 ms Response Time
• Exida and TUV SIL 2/3 Certified
• Local Parameter Setting (LPS)
