Emerson Power Supply Module Brand New Original Box KJ3225X1-BA1

Emerson Power Supply Module Brand New Original Box KJ3225X1-BA1

Description:

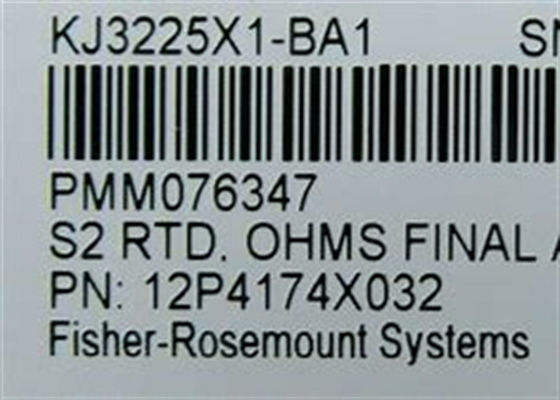

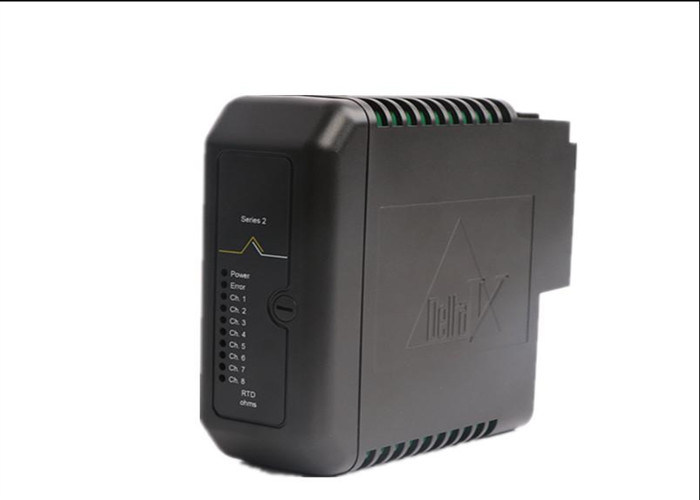

KJ3225X1-BA1 RTD / Resistance Input Card

Power Specifications:

Local Bus Power 12 VDC at 160 mA

Environmental Specifications:

Ambient Temperature: -40°C to +70°C
Shock:10g ½ Sinewave for 11msec
Vibration 1mm Peak to Peak from 2 to 13.2Hz; 0.7g from 13.2 to 150Hz

Airborne Contaminants: ISA-S71.04 –1985 Airborne Contaminants Class G3
Relative Humidity: 5 to 95% Non-Condensing IP 20 Rating
Terminal Block key Position: C3

Note: Refer to the product label for serial number and location and date of manufacture.

Warning: This product has specific instructions for installation, removal and operation in hazardous areas.

Refer to document 12P2046 "DeltaV™ Scalable Process System Zone 2 Installation Instructions"

Other installation instructions are available in the "DeltaV™ M-Series Hardware Installation and Reference" manual.

Removal and Insertion: This unit cannot be removed or inserted with system power energized unless the area is known to be non‐hazardous and only one unit at a time may be removed or inserted.

For “nL” installation, an I/O loop assessment must be completed on all energy-limited nodes.A rotary keying system ensures compatibility between I/O cards and terminal blocks after installation is complete. The terminal block must have the keys set for the I/O card with which it is used.

Maintenance and Adjustment: This unit contains no user serviceable parts and
should not be disassembled for any reason.

Calibration is not required.
