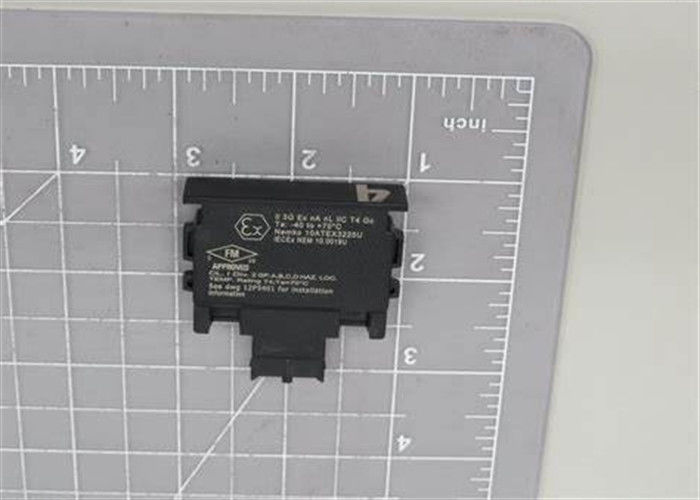

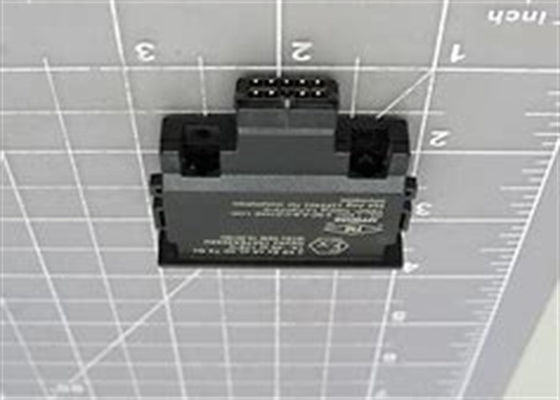

Emerson Deltav Series Power Supply Module KL4501-BD1 Original New

Emerson Deltav Series Power Supply Module KL4501-BD1 Original New

Description:

Power Specifications

CHARM Bus power rating +6.5 VDC at 7 mA

Environmental Specifications:

Ambient Temperature:-40 °C to +70 °C
Shock: 10 g half-sine wave for 11 ms
Vibration: 1mm Peak to Peak from 2 to 13.2Hz; 0.7g from 13.2 to 150Hz
Airborne Contaminants: ISA-S71.04 –1985 Airborne
Contaminants Class G3
Relative Humidity: 5 to 95% Non-Condensing

Address Plug Key Position:

KL4501X1-BA1 ADDRESS PLUG #1 1A
KL4501X1-BB1 ADDRESS PLUG #2 1C
KL4501X1-BC1 ADDRESS PLUG #3 1E
KL4501X1-BD1 ADDRESS PLUG #4 3A
KL4501X1-BE1 ADDRESS PLUG #5 3C
KL4501X1-BF1 ADDRESS PLUG #6 3E
KL4501X1-BG1 ADDRESS PLUG #7 5A
KL4501X1-BH1 ADDRESS PLUG #8 5C

Note: Refer to the product label for serial number and location and date of manufacture.

Warning: This product has specific instructions for installation, removal and operation in hazardous areas. Refer to document 12P5403 "DeltaV™ Electronic Marshalling Digital Automation System (CHARM I/O Subsystem) Zone 2 Installation Instructions".

Other installation instructions are available in the "DeltaV™ S-series and CHARMs Hardware Installation" manual.

Removal and Insertion:

This unit cannot be removed or inserted with system power energized unless the area is known to be non-hazardous.
Non-sparking field circuits MUST be de-energized before removing and inserting an Address Plug.

A keying system ensures compatibility between an Address Plug and the Address terminal block when the Address Plug is installed on the terminal block.

The terminal block keys are automatically set the first time the Plug is installed on the terminal block.
To install another Plug number on a terminal block, reset the keys by removing the terminal block and releasing the keys from the locked position.

Maintenance and Adjustment:

This unit contains no user serviceable parts and should not be disassembled for any reason.

Calibration is not required.
