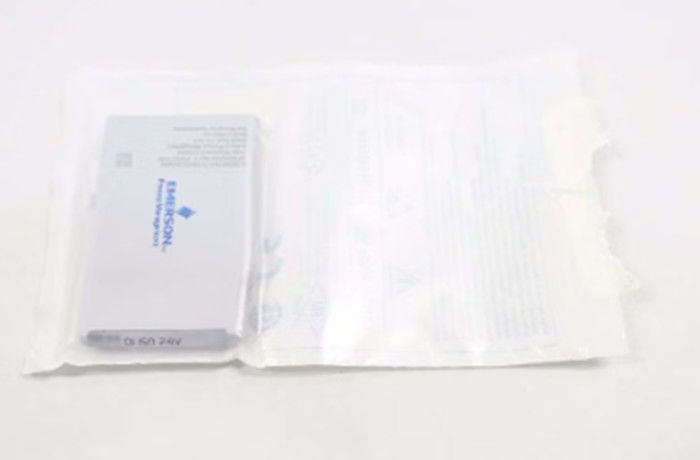

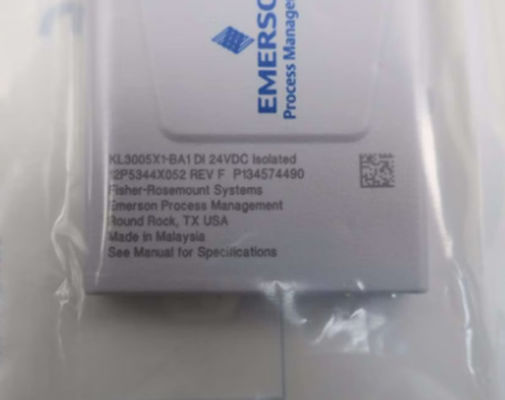

Emerson DI ISO 24V KL3005X1-BA1 DI 12P5344X052 Isolated Charm

Emerson DI ISO 24V KL3005X1-BA1 DI 12P5344X052 Isolated Charm​

Hazardous Atmosphere

II 3G Ex ec IIC Gc

FM19ATEX0173U

IECEx FMG 19.0019U

FM21UKEX0017U

CL. I Div. 2 GP. A,B,C,D

CL. I Zone 2 AEx/Ex ec IIC Gc

FM17CA0145U

FM17US0286U

Power Specifications

LocalBus Power: 6.3 VDC at 32 mA

Field Circuit Power: 24 VDC at 12 mA

Environmental Specifications

Ambient Temperature: -40°C to +70°C

Shock: 10g ½ Sinewave for 11msec

Vibration: 1mm Peak to Peak from 2 to 13.2Hz; 0.7g from 13.2 to 150Hz

Airborne Contaminants :ISA-S71.04 –1985 Airborne Contaminants Class G3

Relative Humidity :5 to 95% Non-Condensing

Terminal Block key Position: 6C

Note:

Refer to the product label for serial number and location and date of manufacture.

Warning:

This product has specific instructions for installation, removal and operation in hazardous areas. Refer to document 12P5403 "DeltaV™ Electronic Marshalling Digital Automation System (CHARM I/O Subsystem) Zone 2 Installation Instructions". Other installation instructions are available in the "DeltaV™ S-Series and CHARMs Hardware Installation" manual.

Removal and Insertion

This unit cannot be removed or inserted with system power energized.

Non-sparking field circuits MUST be de-energized before removing and inserting a CHARM.

For non-sparking circuits, the fuse on a CHARM terminal block cannot be removed when field power is energized.

A keying system ensures compatibility between an Address Plug and CHARM Address Terminal when installed. The Address Terminal keys are automatically set the first time the Address Plug is installed. To install a different Address Plug number on an Address Terminal, reset the keys by removing the Address Terminal from the CHARM Baseplate and pressing the keys to release them from the locked position.

Maintenance and Adjustment

This unit contains no user serviceable parts and should not be disassembled for any reason. Calibration is not required.
