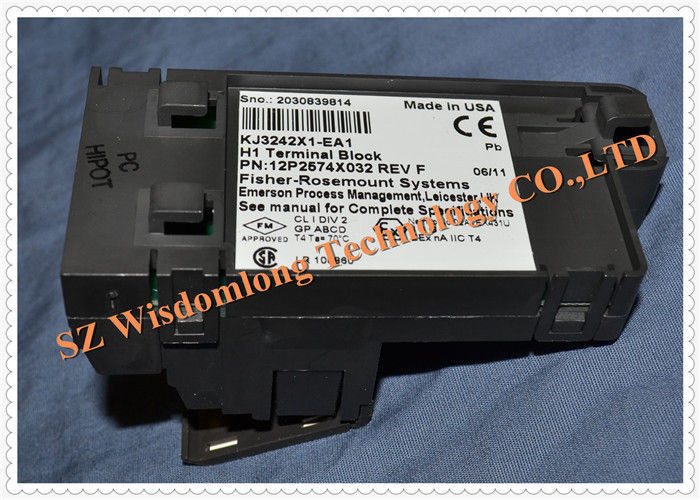

Emerson Fisher-Rosemount DeltaV Power Supply KJ3242X1-EA1 12P2574X032 Redundant Module

Emerson Fisher-Rosemount DeltaV Power Supply KJ3242X1-EA1 12P2574X032 Redundant Module

Product Description

KJ3242X1-EA1 Terminal Block for VE4017P0 KJ3242X1-BA1 12P2471X072 among others

Emerson Process Management, Fisher Rosemount Systems
Catalog Description: H1 Terminal Block
Alternate Part Numbers: KJ3242X1EA1, 12P2574X032, 12P2574X042, 12P2574X052, 12P2574X072
Common Typographical Errors: none

KJ3242X1-EA1 Technical Specifications

• Enables safe and reliable communication between field instruments and the DeltaV system
• Intrinsically safe operation ensures safety in hazardous environments
• Simplex design simplifies wiring and installation

• Part Number: KJ3242X1-EA1
• System: DeltaV H1 Fieldbus
• Hazardous Area Certification: ATEX
• Channel Configuration: Simplex
• Power Supply: Up to 35VDC, 500mA
• Connection: Terminal Block

Environmental Specifications

Traditional I/O terminal block



Traditional I/O interfaces and terminal blocks have I/O function keys. These keys ensure that the correct I/O card is always plugged into the corresponding terminal block. It’s incredibly easy to use and gives you time to do more. This design enables you to initially install Traditional I/O quickly and efficiently. When you need to replace an I/O card, the function key design ensures that you will always install it correctly. This keying system provides a safety measure by preventing the wrong I/O interface’s being installed.





I/O Terminal Blocks



A variety of I/O terminal blocks are available to meet specific functionality and environmental requirements of the installation. The I/O interface is a combination of the I/O card and the I/O terminal block. Each I/O interface is uniquely keyed so that once installed in a carrier slot with a terminal block, that terminal block will only accept a replacement card.



The keying mechanism consists of two keying posts that rotate and lock into the terminal block base. Each post has 6 positions: A-F and 1-6. Each card is assigned a unique key, which is marked on the side of the I/O card:
