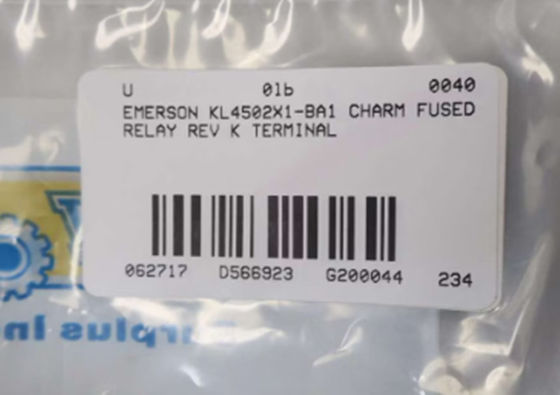

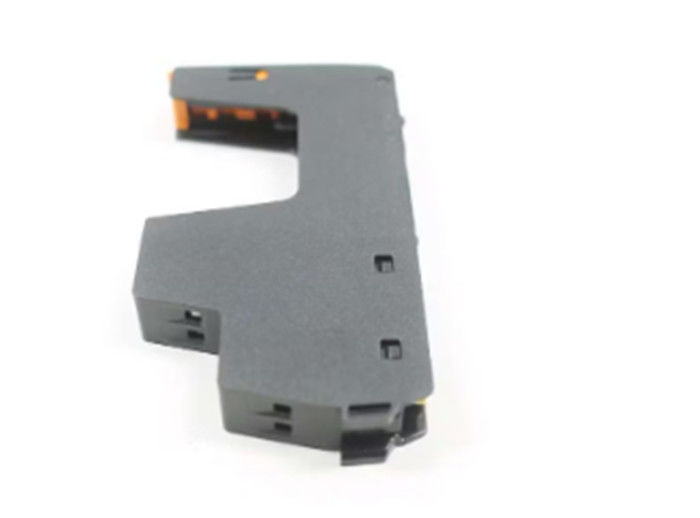

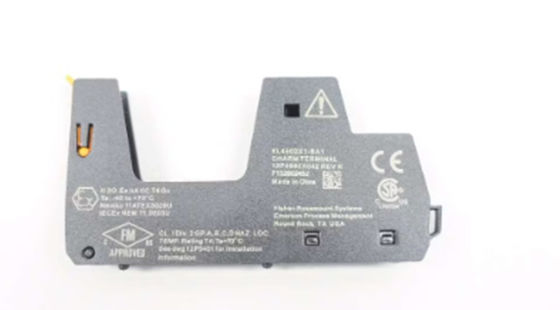

Emerson KL4502X1-BA1 12P4990X042 Deltav Charm Terminal Module
Product Description
Brand: EMERSON
Model: KL4502X1-BA1 12P4990X042
Hazardous Atmosphere
II 3G Ex nA nL IIC Gc
II 3G Ex ec ic IIC Gc
FM19ATEX0173U
IECEx FMG 19.0019U
FM21UKEX0017U
CL. I, Zone 2 AEx/Ex ec ic IIC Gc
FM17CA0145U
FM17US0286U
Power Specifications
CHARM Terminal power : 250 VAC at 2 A
Environmental Specifications
| Ambient Temperature |
-40 to 70oC |
| Shock |
10g ½ Sinewave for 11 msec |
| Vibration |
1mm Peak to Peak from 2 to 13.2Hz; 0.7g from 13.2 to 150Hz |
| Airborne
Contaminants
|
ISA-S71.04 –1985 Airborne
Contaminants Class G3
|
| Relative Humidity |
5 to 95% Non-Condensing |
| Terminal block key position |
Automatically set during installation |
Note:
Refer to the product label for serial number and location and date of manufacture
Warning:
This product has specific instructions for installation, removal and operation in hazardous areas. Refer to document 12P5403 "DeltaV Electronic Marshalling Digital Automation System (CHARM I/O Subsystem) Zone 2 Installation Instructions". Other installation instructions are available in the " DeltaV S-series and CHARMs Hardware Installation" manual.
Removal and Insertion
CHARM Standard Terminals can be added or removed with System Power applied only when the following conditions are met:
• no Charm is installed
• no energized field wiring is connected to the terminal
Once installed, the Charm Terminal assumes the circuit parameters of the Charm for that position.
A keying system ensures compatibility between a CHARM and the CHARM terminal block when the CHARM is installed on the terminal block. The terminal block keys are automatically set the first time the CHARM is installed on the terminal block. To install another CHARM type on a terminal block, reset the keys by removing the terminal block and releasing the keys from the locked position.
Maintenance and Adjustment
This unit contains no user serviceable parts and should not be disassembled for any reason.
Calibration is not required.
