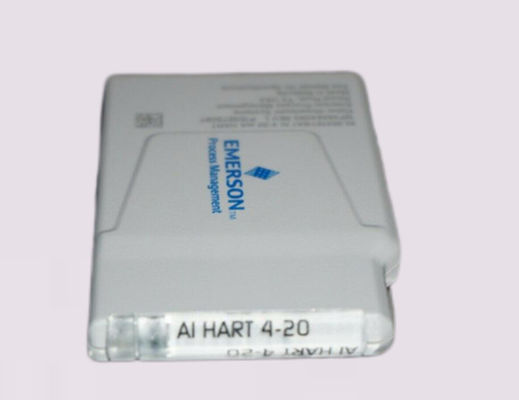

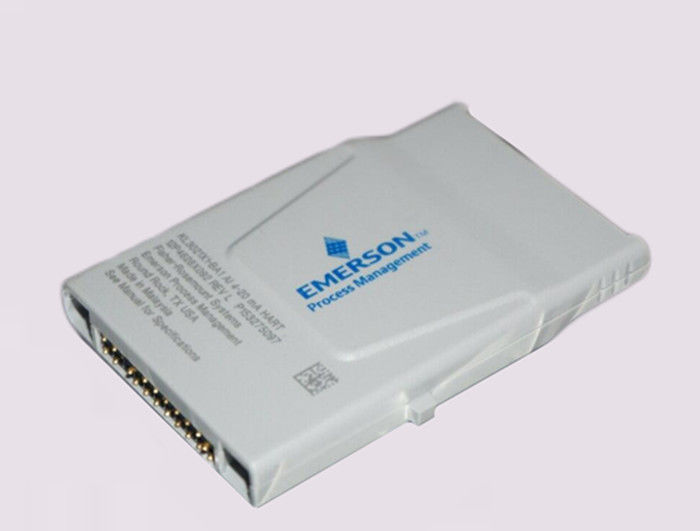

Emerson DELTAV KL3021X1-BA1 12P4628X062 AI 4-20 mA HART

Emerson DELTAV KL3021X1-BA1 12P4628X062 AI 4-20 mA HART



Description

• Brand/ Manufacturer: EMERSON

• Dimensions: 13.0 cm x 1.9 cm x 19.1 cm

• Weight: 0.2 kg

• Country Of Origin:  USA

• Description: EMERSON KL3021X1-BA1 AI 4-20 mA HART CHARM

• Full Description: EMERSON KL3021X1-BA1 AI 4-20 mA HART CHARM Sensor types4-20 mA with or without HART, 0-20 mA, Supports 2-wire and 4-wire device types directly, Supports 3-wire device powered through the, 24 V DC Power CHARM

Overview


Sensor types4-20 mA with or without HART, 0-20 mA, Supports 2-wire and 4-wire device types directly, Supports 3-wire device powered through the, 24 V DC Power CHARM

Nominal Signal Range (span)4-20 mA, (0-20 mA optional)

Full Signal Range0 to 24 mA

Field Power (2-wire)15.0 V at 20 mA @ 24 V DC input

Accuracy Over Temperature Range0.1% of span (0-60°C), 0.25% of span (over -40 -70°C)

Repeatability0.05% of span

Resolution16 bit A/D converter

Input Impedance250 Ω ±1%

CalibrationNone required

Field Circuit Protection30 mA Current Limiting circuit, Field wiring disconnect

CHARM Power Req.36 mA max @ 24 V DC for two wire configuration, 12 mA max @ 24 V DC for three and four wire configuration

Environmental Specifications

Ambient Temperature:-40 °C to +70 °C

Shock :10g ½ Sinewave for 11msec

Vibration :1mm Peak to Peak from 2 to13.2Hz; 0.7g from 13.2 to 150Hz

Airborne :ISA-S71.04-1985 Airborne

Contaminants :Contaminants Class G3

Relative Humidity:5 to 95% Non-Condensing

Terminal block keyposition :1A


Note:





Packaging & Delivery


Packaging Details
Cartons

Delivery Time
Whithin 3-5 days
