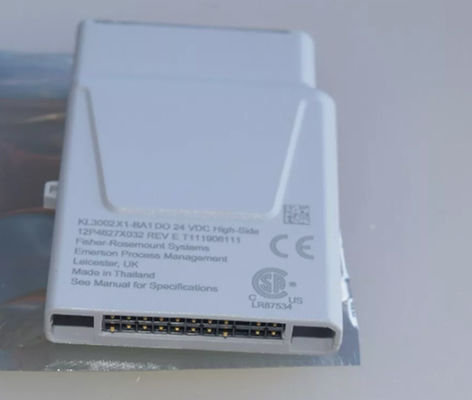

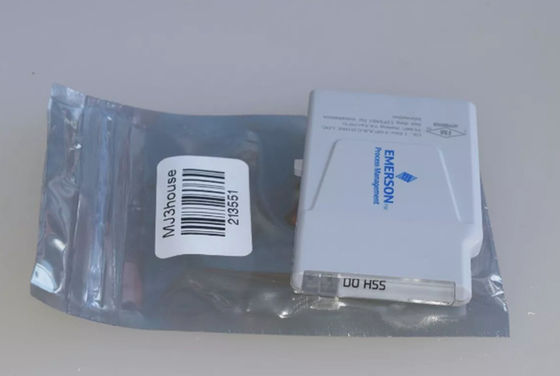

Emerson KL3002X1-BA1 12P4627X052 DO 24 VDC High-Side CHARM

Emerson KL3002X1-BA1 12P4627X052 DO 24 VDC High-Side CHARM

Product Description

Fisher Rosemount Systems, Emerson Process Management

See drawing 12P5401 for installation information

Catalog Description: Discrete Output - High Side, DO HSS, 24 VDC

Alternate Part Numbers: 12P4627X062, 12P4627X082, 12P4627X102, KL3002X1BA1

Dimensions: 0.3" x 2.0" x 3.0"
(0.6 cm x 5.1 cm x 7.6 cm)

Tariff Code: 8538907080

Hazardous Atmosphere

II 3G Ex ec IIC Gc

FM19ATEX0173U

IECEx FMG 19.0019U

FM21UKEX0017U

CL. I Div. 2 GP. A,B,C,D

CL. I Zone 2 AEx/Ex ec [ic] IIC Gc

FM17US0286U

FM17CA0145U

Power Specifications

CHARM Bus Power :6.3 VDC at 32 mA 2

Field Circuit Power: 4 VDC at 5 mA

Environmental Specifications

Ambient Temperature:-40 °C to +70 °C

Shock :10g ½ Sinewave for 11msec

Vibration :1mm Peak to Peak from 2 to13.2Hz; 0.7g from 13.2 to 150Hz

Airborne Contaminants : ISA-S71.04-1985 AirborneContaminants Class G3

Relative Humidity:5 to 95% Non-Condensing

Terminal Block Key : 3C

Note:

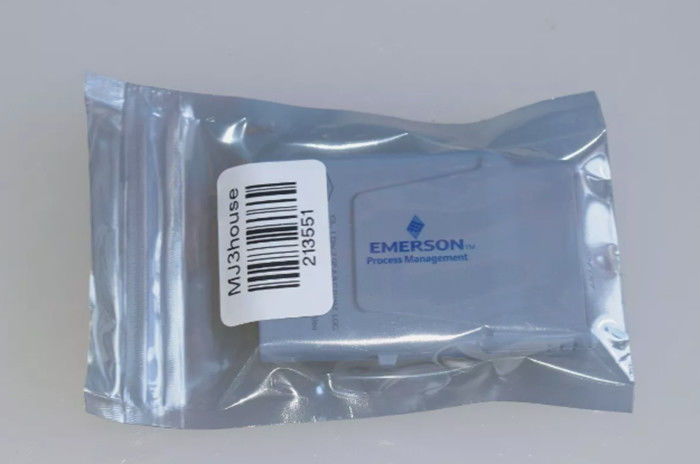

Packaging & Delivery


Packaging Details
Cartons

Delivery Time
Whithin 3-5 days
