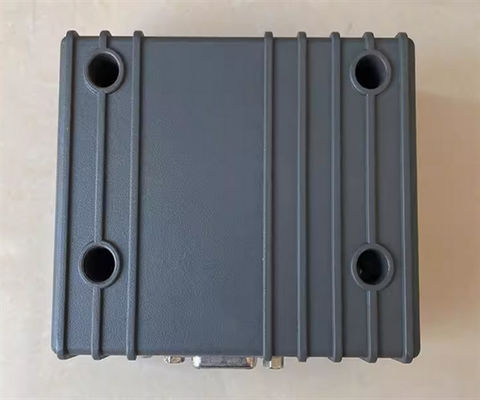

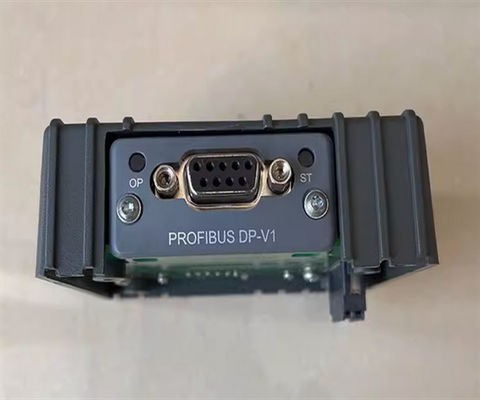

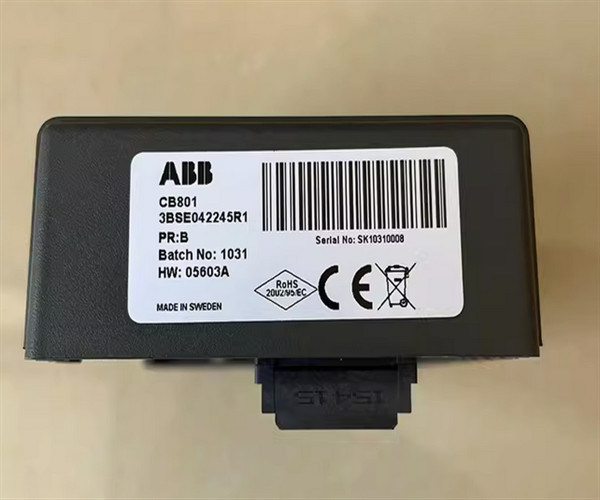

CB8013 BSE042245R1 L .AN Communication Control Module

Product Details:

Place of Origin:	FI
Brand Name:	ABB
Certification:	Does not supply
Model Number:	CB801 3BSE042245R1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiation
Packaging Details:	in box
Delivery Time:	3-5days
Payment Terms:	T/T, Western Union, PAYONEER
Supply Ability:	10

Contact Now

Detailed Product Description

Brand:	ABB	Channel Type:	DI
Weight:	0.3kg	Isolation:	Individually Galvanic Isolated Channels
Product Type:	I-O_Module	Product ID:	CB801 3BSE042245R1
RoHS Status:	Following EU Directive 2011/65/EU	Part Number:	CB801 3BSE042245R1

CB8013 BSE042245R1 L .AN Communication Control Module

Product technical indicators:
◆Adopting GFSK modulation, reliable transmission distance up to 800m from line-of-sight;
◆Carrier frequency 433 MHz;
◆Provide 16 channels;
◆Interface/channel rate: 1200/2400/4800/9600/19200/38400bps;
◆Interface: TTL, RS-232, RS-485 by user's choice;
◆Transmit/receive all in one, half-duplex, data send/receive conversion is done automatically, just send/receive
data to/from the interface, short conversion time;
◆Can be used for point-to-point, point-to-multipoint, multipoint-to-point and other communication combinations;
◆Transparent data transmission, can transmit longer data frames;
◆Automatically flter out the false data generated in the air, good long-term reliability, low failure rate;
◆Power supply requirements: TTL: DC +2.8V ~ +3.3V or +3.6V ~ +5.5V, RS-232/RS-485: DC +4.5V ~ +5.5V; .
◆Low power consumption: power 100mw, receive current <35mA, transmit current <100mA, current <1 5uA during
sleep (customised);
◆Three power saving modes: hardware wake-up, serial port wake-up, air wake-up;
◆Temperature: -20°C~ 75°C;

Ordering

HS Code:

851762-- Telephone sets, including telephones for cellular networks or for other wireless networks; other apparatus for the transmission or reception of voice, images or other data, including apparatus for communication in a wired or wireless network (such as a local or wide area network), other than transmission or reception apparatus of heading 84.43, 85.25, 85.27 or 85.28.- Other apparatus for transmission or reception of voice, images or other data, including apparatus for communication in a wired or wireless network (such as a local or wide area network) :-- Machines for the reception, conversion and transmission or regeneration of voice, images or other data, including switching and routing apparatus

Customs Tariff Number: 85176200

Dimensions

Product Net Depth / Length: 153 mm

Product Net Height: 49.5 mm

Product Net Width: 121.5 mm

Product Net Weight: 0.2 kg

Environmental

RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment

WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)

Number of Batteries: 0

SCIP: No SVHC present Sweden (SE)

FAQ:

Q: What is the brand name of the product?
A: The brand name of the product is ABB.
Q: What is the model number of the product?
A: The model number of the product is CB801 3BSE042245R1.
Q: Where is the product manufactured?
A: The product is manufactured in FI.
Q: What are the available payment terms?
A: The available payment terms are T/T, Western Union, and PAYONEER.
Q: What is the delivery time for the product?
A: The delivery time for the product is 3-5 days.
