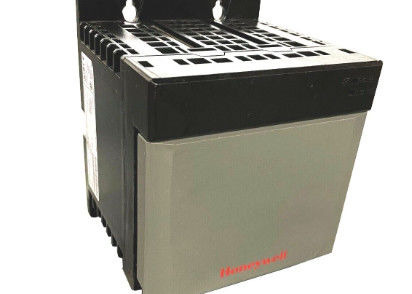

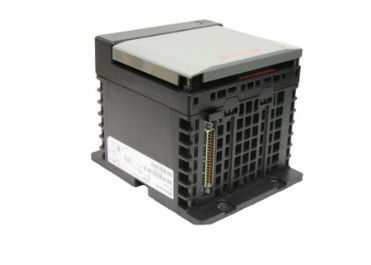

Honeywell TK-RPCXX1 Power Supply Stable And Reliable Power 320-120VDC 110 MB
Honeywell TK-RPCXX1
Our products are widely used in CNC mechanical metallurgy, oil and gas, petrochemical industry,
Chemical industry, paper printing, textile printing and dyeing, machinery, electronic manufacturing, automobile manufacturing,
Plastic machinery,electricity, water conservancy, water treatment/environmental protection, municipal engineering, boiler heating, energy, powel
transmission and distribution.
More Information
Product Details Parameters : Honeywell TK- RPCXX1
-
Manufacturer : Honeywell
-
Coated : TK- RPCXX1
-
Input Voltage Range : 85 – 265 VAC
-
Input Power : 110VA, 110 W (estimated)
-
Maximum Inrush Current : 20 A
-
Frequency Range : 47 – 63 Hz
-
Total power output maximum, watts : 75W@60 C
-
Backplane Output Current, Maximum1 : 1.5A@1.2V / 4A@3.3V / 13A@5.1V / 2.8 A @ 24.0 V
-
Input Power Wiring : #14 AWG (1.4 mm)
-
Annunciation User Connection2 : Solid state relay rated for 120 VAC/DC t 100ma maximum
-
Dimensions (L x D x H) : 14.4 x 13.7 x 17.5 cm (5.67 x 5.39 x 6.89 in)
-
Weight – Approximate : 1.1 kg (2.5 lb.)
-
Redundant Power Supply Cable Model (3ft) : TC-RPSC03 (one required per power supply)
-
Power Supply Cable Weight – Approximate : 0.57 kg (1.25 lb.)
-
Location3 : Upright mounting, typi lly above/below chassis to be powered.
-
Dimensions (L x D x H) : 3.4 x 14.4 x 15.0 cm (1.34 x 5.67 x 5.91 in.)
-
Weight : 0.228 kg (0.50 lb.)
The Honeywell TK-RPCXX1 is a redundant power supply module designed for use with Honeywell Experion LS control systems. It provides a reliable source of power for the control system and its peripherals, and can help to ensure that the system continues to operate even if one of the power supplies fails.
The TK-RPCXX1 has a wide input voltage range of 85-265 VAC, and can provide up to 75 watts of power at 60 degrees Celsius. It also has a number of features that make it well-suited for industrial applications, such as:
- High efficiency: The TK-RPCXX1 has a high efficiency rating, which means that it wastes less energy than other power supplies.
- Wide operating temperature range: The TK-RPCXX1 can operate in a wide range of temperatures, from -40 to +85 degrees Celsius.
- Seismic certification: The TK-RPCXX1 is certified to meet seismic requirements, which means that it can withstand earthquakes and other vibrations.
Honeywell TK- RPCXX1 Daily Applications :
1. Oil and Gas
2. Power Generation
3. Chemical Processing
4. Manufacturing
5. Pulp and Paper
6. Turbines
7. Compressors
8. Pumps
9. Fans
About Honeywell
Honeywell International Inc. is a diversified technology and manufacturing multinational corporation headquartered in Charlotte, North Carolina, United States. The company was established in 1999 by the merger of Allied Signal and Honeywell Inc.
Honeywell’s main products and services include:
1. Aerospace products and services: including aircraft engines, navigation systems, cockpit equipment, wheels, and brakes.
2. Building and home building control technology: including HVAC, lighting, safety and security, building automation and other systems.
3. Automation products: including industrial control, process control, instrumentation, sensing and analysis products.
4. Special chemicals: including high-performance materials, electronic chemicals, special gases, and catalysts.
5. Electronics and advanced materials: including semiconductor materials, display materials, advanced plastics, and composite materials.
6. Transportation and power systems and products: including turbochargers, friction materials, automotive electronics, and autonomous driving technology.
