Name: Allen-Bradley 1747-SDN DeviceNet Scanner Module 500mA
Brand: Wisdomlong Technology CO.，LTD
SKU: 1747-SDN
Price: 1.00 USD
Availability: InStock

Home Products Redundant Power Supply Module

Allen-Bradley 1747-SDN DeviceNet Scanner Module 500mA

Product Details:

Place of Origin:	Japan
Brand Name:	AB
Certification:	CE
Model Number:	1747-SDN

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiated
Packaging Details:	New Original
Delivery Time:	3-5days
Payment Terms:	L/C, T/T
Supply Ability:	1000

Contact Now

Detailed Product Description

Brand:	AB	Product Type:	Digital I O Module
Part Number:	1747-SDN	Place Of Origin:	Japan
Signal Range::	4...20mA, 0...20mA	Temperature Rating::	-20...55 Â°C (-4...131 Â°F)

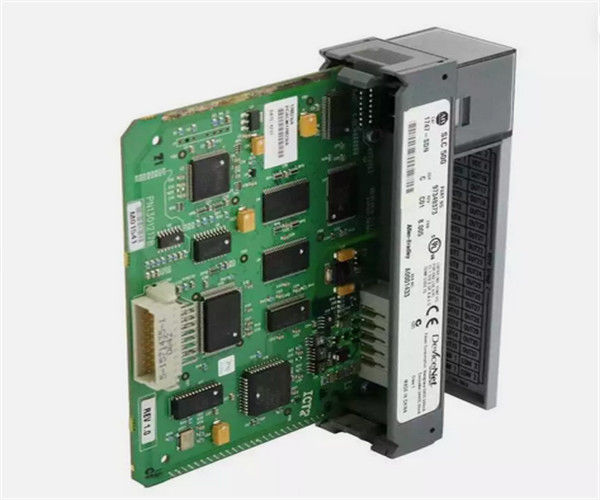

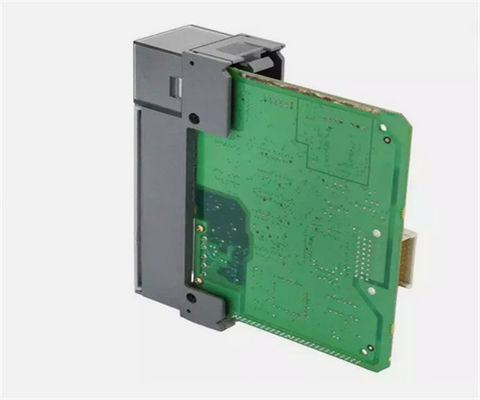

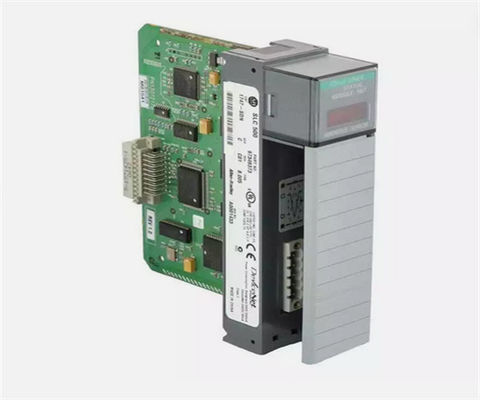

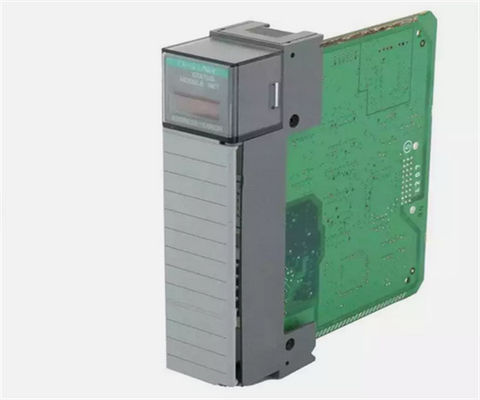

Allen-Bradley 1747-SDN DeviceNet Scanner Module 500mA

Description of 1747-SDN

DeviceNet, Scanner Module, 500 mA, SLC5/02 and Higher

Our Bulletin 1747 SLC™ 500 control platform is used for a wide variety of applications. Rockwell Automation has announced that some SLC 500 Bulletin numbers are discontinued and no longer available for sale. Customers are encouraged to migrate to our newer CompactLogix™ 5370 or 5380 control platforms.

Product Number : 1747-SDN

Model	1771-SDN
Module location	SLC 5/02 or later chassis
Module defaults	Node Address 63 Baud Rate 125 Kbps
Power consumption - Backplane current - DeviceNet	5V DC, 500 mA 24V DC, 90 mA Class 2
Isolation voltage	30V (continuous), Basic Insulation Type Tested at 500V AC for 60 s, DeviceNet to backplane
Temperature, operating	IEC 60068-2-1 (Test Ad, Operating Cold), IEC 60068-2-2 (Test Bd, Operating Dry Heat), IEC 60068-2-14 (Test Nb, Operating Thermal Shock): 0...60?C (32...140?F)
Temperature, non-operating	IEC 60068-2-1 (Test Ab, Unpackaged Nonoperating Cold), IEC 60068-2-2 (Test Bc, Unpackaged Nonoperating Dry Heat), IEC 60068-2-14 (Test Na, Unpackaged Nonoperating Thermal Shock): -40...85?C (-40...185?F)
Relative humidity	IEC 60068-2-30 (Test Db, Unpackaged Damp Heat): 5 95% non-condensing
Vibration	IEC60068-2-6 (Test Fc, Operating): 2 g @10 500 Hz
Shock	IEC60068-2-27:1987, Test Ea (Unpackaged shock, ES#002) Operating 30 g Non-operating 50 g
Emissions	CISPR 11: Group 1, Class A (with appropriate enclosure)
ESD immunity	IEC 61000-4-2: 6 kV contact discharges 8 kV air discharges
Radiated RF immunity	IEC 61000-4-3: 10 V/m with 1 kHz sine-wave 80% AM from 80 2000 Mhz
EFT/B immunity	IEC 61000-4-4: +2 kV at 5 kHz on communication ports
Surge transient immunity	IEC 61000-4-5: ?2 kV line-earth(CM) on communications ports
Conducted RF immunity	IEC 61000-4-6: 10 Vrms with 1 kHz sine-wave 80% AM from 150 kHz 80 MHz
Magnetic field immunity	IEC 61000-4-8: 30A/m long duration at 50 Hz
Enclosure type rating	None (open style)
Wiring - Size - Category?	Refer to DeviceNet Media Design Installation Guide 2 on communication ports
10-pin Linear plug - Torque - Catalog number	0.6 0.8 Nm (5 7 lb-in) 1787-PLUG10R
North American temperature code	T5

Estimated Shipping Size of 1747-SDN
Dimensions: 5.0" x 2.0" x 6.0"
(12.7 cm x 5.1 cm x 15.2 cm)
Weight: 0 lbs 12.0 oz (0.3kg )
