22B-D1P4N104 PowerFlex 40 AC Drive 380V 0.4KW VDF Inverter Drive

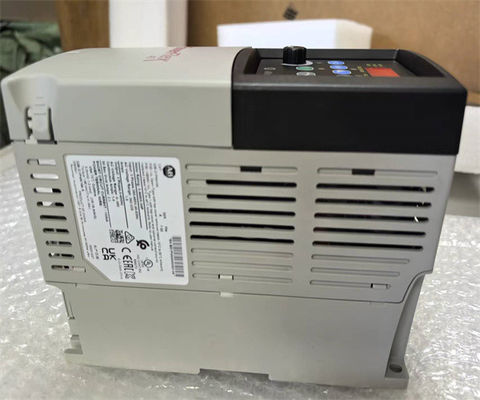

The Allen-Bradley 22B-D1P4N104 is a PowerFlex 40 Adjustable Frequency AC Drive. This drive is a Sensorless Vector Control (SVC) or Field Oriented Control (FOC) capable drive that is ideally used in applications such as machine tools, fans, pumps, conveyors, and material handling systems. PowerFlex 40 drive are popular with Original Equipment Manufacturer (OEM) as it comes with compact assembly with upgrade options.

The 22B-D1P4N104 input characteristics include 342-528 VAC input voltage range, 1.4 kVA and 1.8 Amperes continuous input current. The drive is capable of providing output power specifically, 0.4 kW or 0.5 HP, continuous output current of 1.4 Amperes and 0-460 VAC output voltage towards the motor.

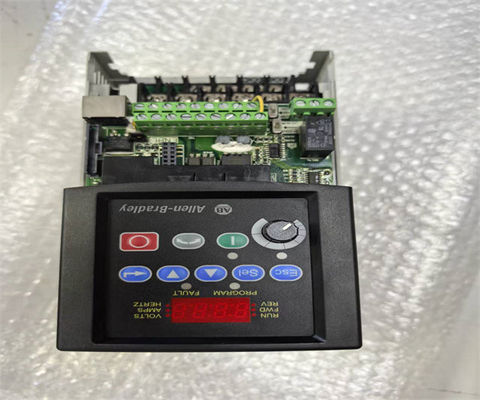

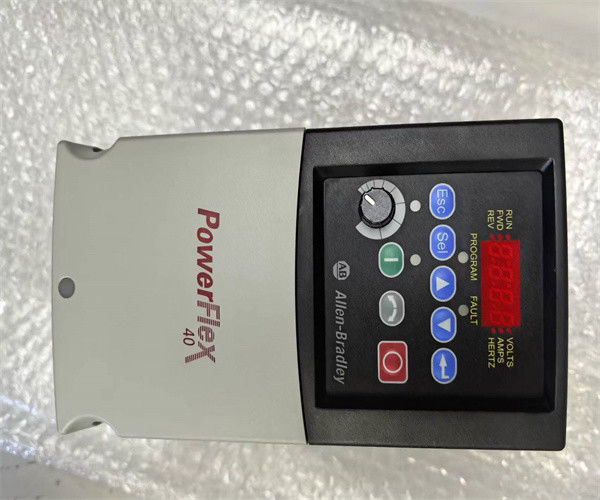

The 22B-D1P4N104 is designed with integral keypad which permit the drive to be locally operated, for carrying out motor commands such as Start / Stop / Jog control and Frequency Control. The keypad is also equipped with a potentiometer that is integrated to modify the frequency of the motor. This same integral keypad is used to modify configuration of the VFD unit and aid in troubleshooting as it is has an embedded LCD display that functions as the unit’s readout.

Remote operation is possible with the 22B-D1P4N104 by integrating through hardwired signals the embedded input and output channels of the drive that is composed of 3 inputs fixed for START/STOP/REV and 4 Fully Programmable discrete inputs; 4 fully programmable and One (1) - N.O/N.C. dry contact and Two (2) Digital / Optocoupler discrete outputs; Two (2) 0…10V or 4…20 mA (unipolar); One (1) +/- 100V bipolar analog input; One (1) 0-10 VDC / 4-20 mA analog output. Control over communication protocol is also possible through the embedded RS485 communication port.

The 22B-D1P4N104 has an ambient operating temperature range of 10-50oC (14- 122oF). It can be mounted at a maximum altitude of 1000 m (3300 ft.) without derating. Consider installing in an area that is not exposed to volatile or corrosive vapors, gas, or dust. With Electrostatic Discharge (ESD)-sensitive assemblies and parts, ESD control precautions should be in place when testing, installing, and servicing. The 22B-D1P4N104 drive features integral RS-485 communication and is compatible with PC tools that assist with monitoring, troubleshooting, and programming. Such PC tools include Drive Explorer and Drive Tool SP. 22B-D1P4N104. It has powerful motor speed in a space-saving design, making it ideal for machine level speed control. 22B-D1P4N104 meets the demands of global OEMs with application versatility and ease of use. This PowerFlex 40 drive is equipped with sensorless vector performance, which allows the drive to automatically provide auto-boost and slip compensation.
