Allen-Bradley 1746-OW16 SLC 500 Digital Output Module

Description  of 1746-OW16

The Allen-Bradley SLC 500 Model 1746 Output Module receives and stores digitally converted analog data into its image table for retrieval by all fixed and modular SLC 500 processors. The module supports connections from any combination of up to eight voltage or current analog sensors.

SLC 500 programmable controllers provide excellent value with extensive capabilities to address a broad range of applications including material handling, HVAC control, high speed assembly operations, small process control, simple motion control, and SCADA.

Voltage category: 120/240V ac signal
Number of outputs: 16
Points per common: 8
Voltage, operating: 85...265V ac at 47...63 Hz
Backplane current consumption : 0.370 A 0.370 A
Signal delay, max resistive load: (4) On = 1 ms, Off = 11.0 ms
Off-state leakage, max: (5) 2 mA
Load current, min: 10 mA

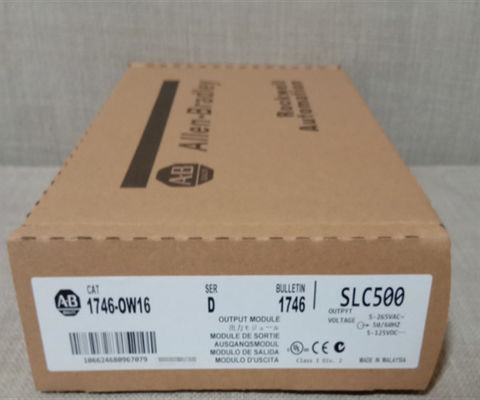

Estimated Shipping Size of 1746-OW16

Dimensions: 5.0" x 2.0" x 6.0"
(12.7 cm x 5.1 cm x 15.2 cm)
Weight: 0 lbs 10.2 oz (0.3kg )
