Allen Bradley 1756-IT6I ControlLogix Analog Input Module Signal Range 4...20mA

Description of  1756-IT6I

Overview

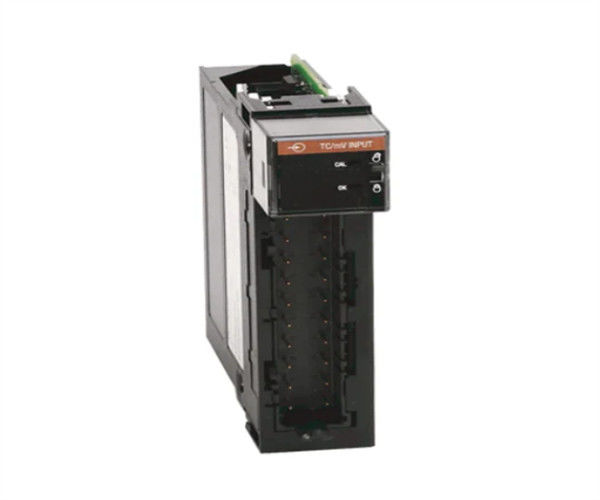

Allen Bradley 1756-IT6I is a specialized analog input module for ControlLogix systems. It is designed to acquire signals from various thermocouples and millivolt sources. This module features six individually isolated channels, making it ideal for precise temperature measurement and control.

Key Features and Specifications of 1756-IT6I

Thermocouple Compatibility:

• Supports a wide range of thermocouple types, including B, E, J, K, R, S, T, N, C, D, and L (TXK/XK).
• Provides accurate readings across diverse temperature ranges.

Input Channels:

• Offers six individually isolated channels for flexible application design.

Resolution:

• Features 16-bit resolution for high-precision measurements.
• Includes a typical range of 1.4 microvolts per bit for -12 to 78 millivolts.
• Provides 0.7 microvolts per bit for high-resolution range.

Isolation:

• Ensures each channel is isolated to prevent signal interference.

Compatibility:

• Designed for use with Allen Bradley ControlLogix systems.

Applications of 1756-IT6I

Typical Applications for the 1756-IT6I Include:

• Process Control: Monitoring and controlling temperature in manufacturing processes.
• Temperature Monitoring: Tracking temperature in ovens, furnaces, and other equipment.
• Industrial Automation: Integrating temperature measurements into automated systems.

Benefits

Versatility:

• Handles a wide range of thermocouple types.

Accuracy:

• Ensures precise measurements with high resolution.

Reliability:

• Built with a rugged design for industrial environments.

Flexibility:

• Provides individual channel isolation for customized applications.
